Fig. 2: Spatiotemporal expression of different isoforms of ANK3 in the brain.
From: Roles and mechanisms of ankyrin-G in neuropsychiatric disorders

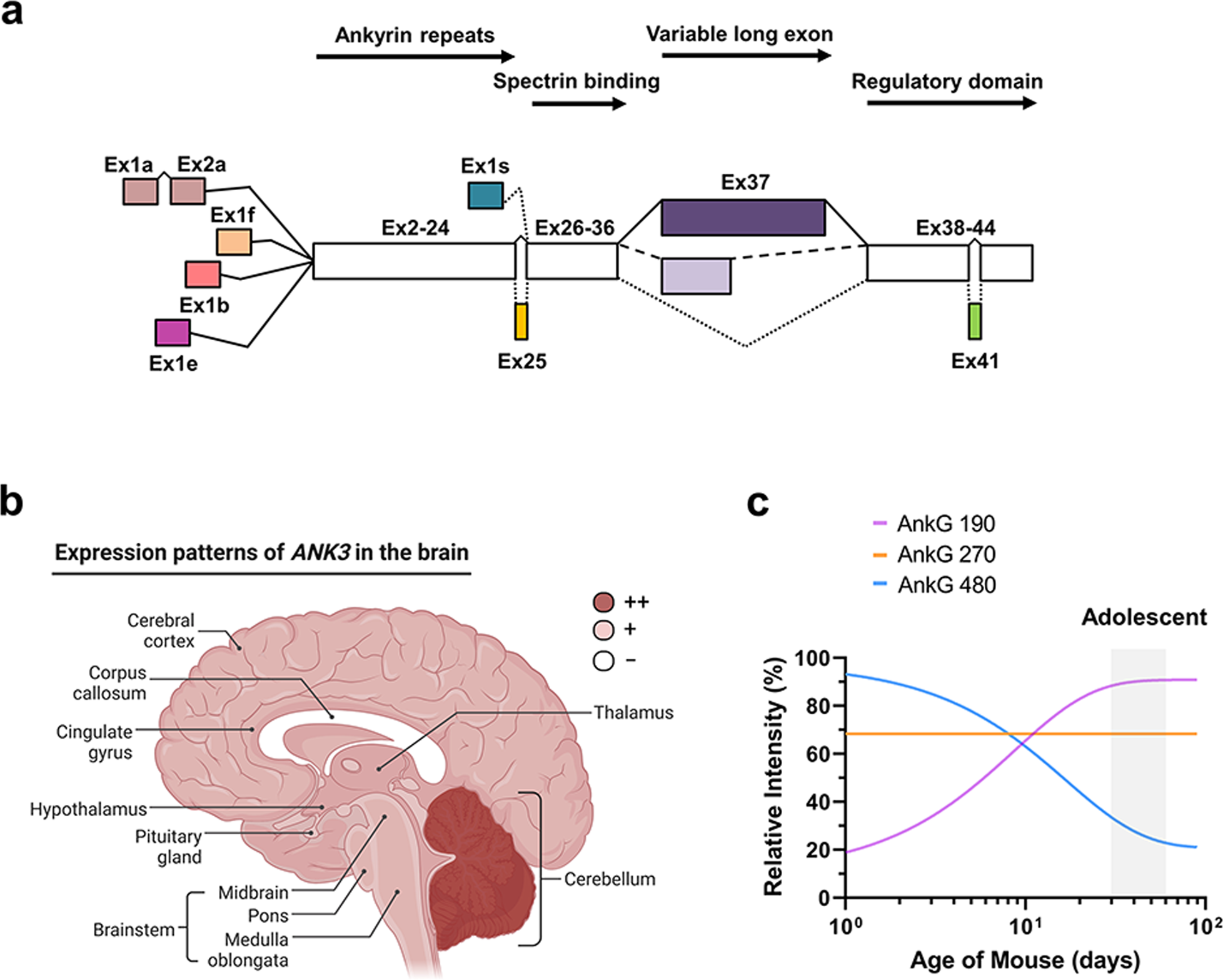

a A diagram of ANK3 transcription start sites and alternative splicing. b Expression patterns of the ANK3 gene in the human brain (adapted from The Human Protein Atlas). c A schematic summary of the trajectories of the different ankyrin-G isoforms in the mouse brain. Expression levels were measured as log10 of western blot intensities from Yoshimura et al.61.
