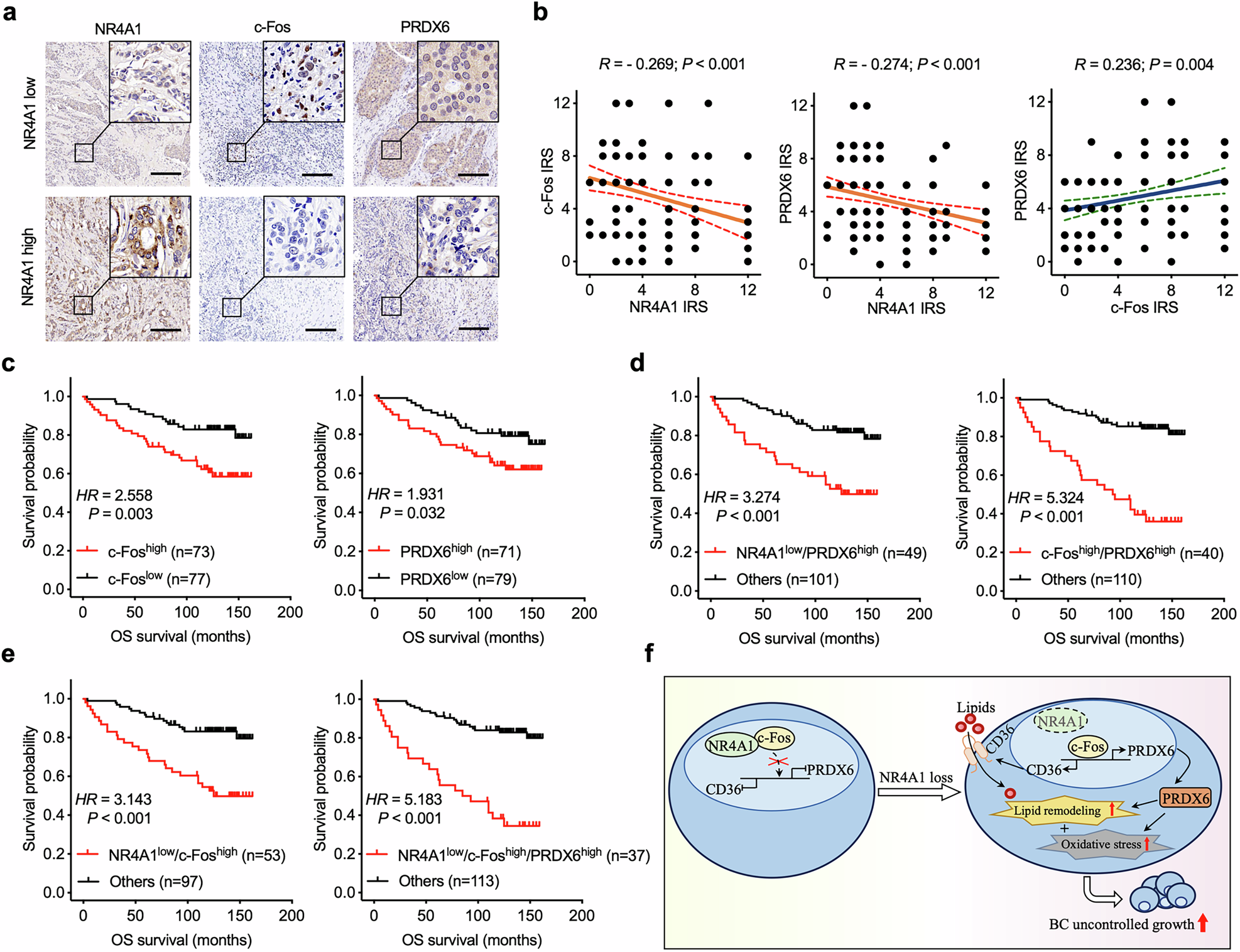

Fig. 8: The impact of NR4A1–c-Fos–PRDX6 axis on BC prognosis.
From: NR4A1 suppresses breast cancer growth by repressing c-Fos-mediated lipid and redox dyshomeostasis
a Representative IHC staining of NR4A1, c-Fos and PRDX6 in cohort 2 TMA. Scale bars, 200 μm. b Pearson correlation analysis between NR4A1, c-Fos and PRDX6 protein expression based on IRS in cohort 2 TMA. R represents the Pearson correlation coefficient. c Kaplan–Meier survival plots of patients with BC in cohort 2 TMA based on c-Fos, or PRDX6 expression. d Kaplan–Meier survival plots of patients with BC in cohort 2 TMA based on the protein levels of NR4A1 co-expressed with PRDX6, or c-Fos co-expressed with PRDX6. e Kaplan–Meier survival plots of patients with BC in cohort 2 TMA based on the protein levels of NR4A1 co-expressed with c-Fos, or NR4A1 co-expressed with c-Fos and PRDX6. Log-rank tests were used in c–e. f Schematic diagram of the proposed mechanism.
