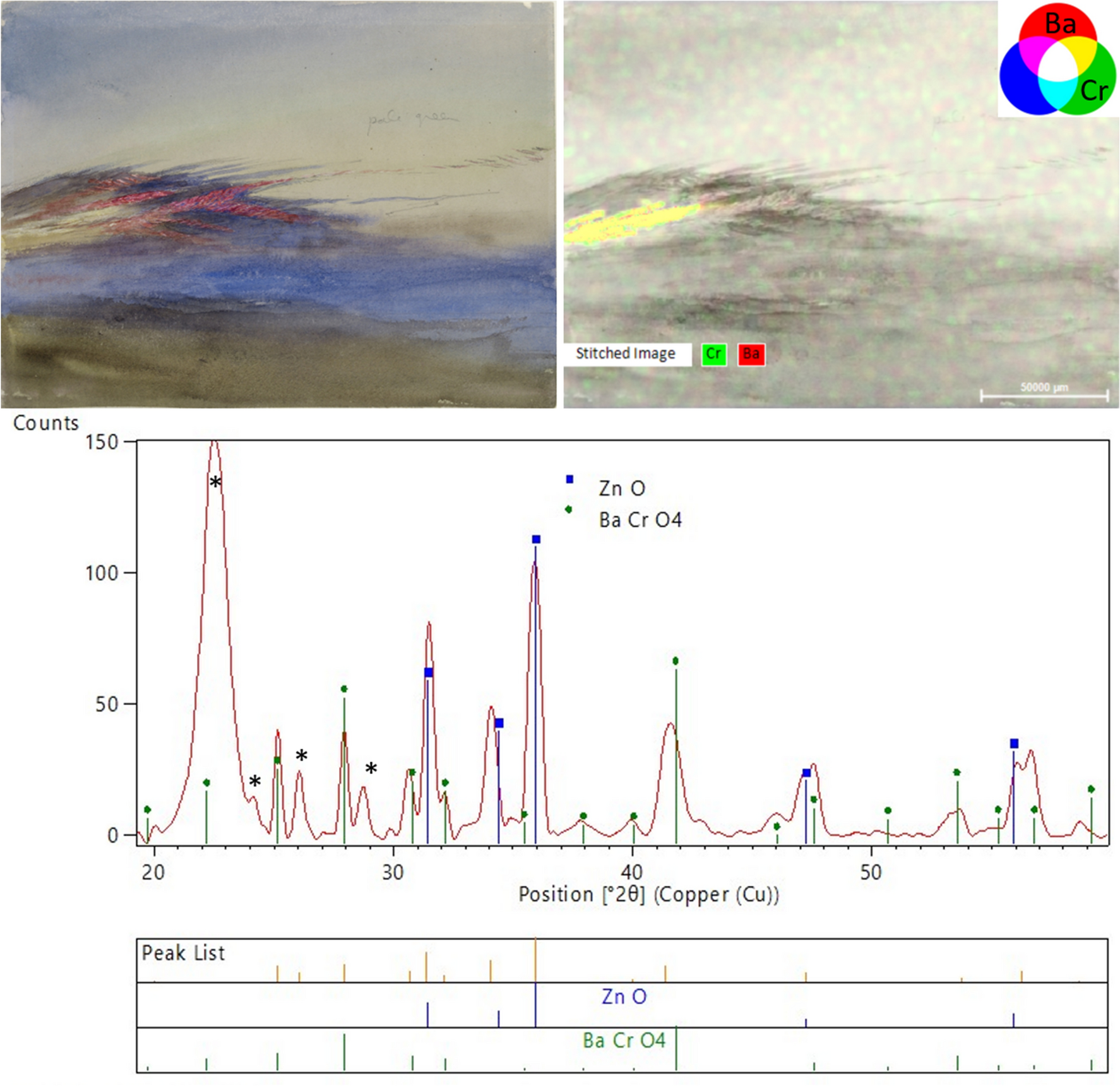

Fig. 6
Top left: Study of Clouds, Norwood (WA.RS.ED.289bis.b). Top right: macro-XRF maps of chromium (green) and barium (red) overlapping a stitched image of the watercolour. Bottom: XRD diffractogram of the pale yellow wash, the asterisks indicate peaks from the paper support
