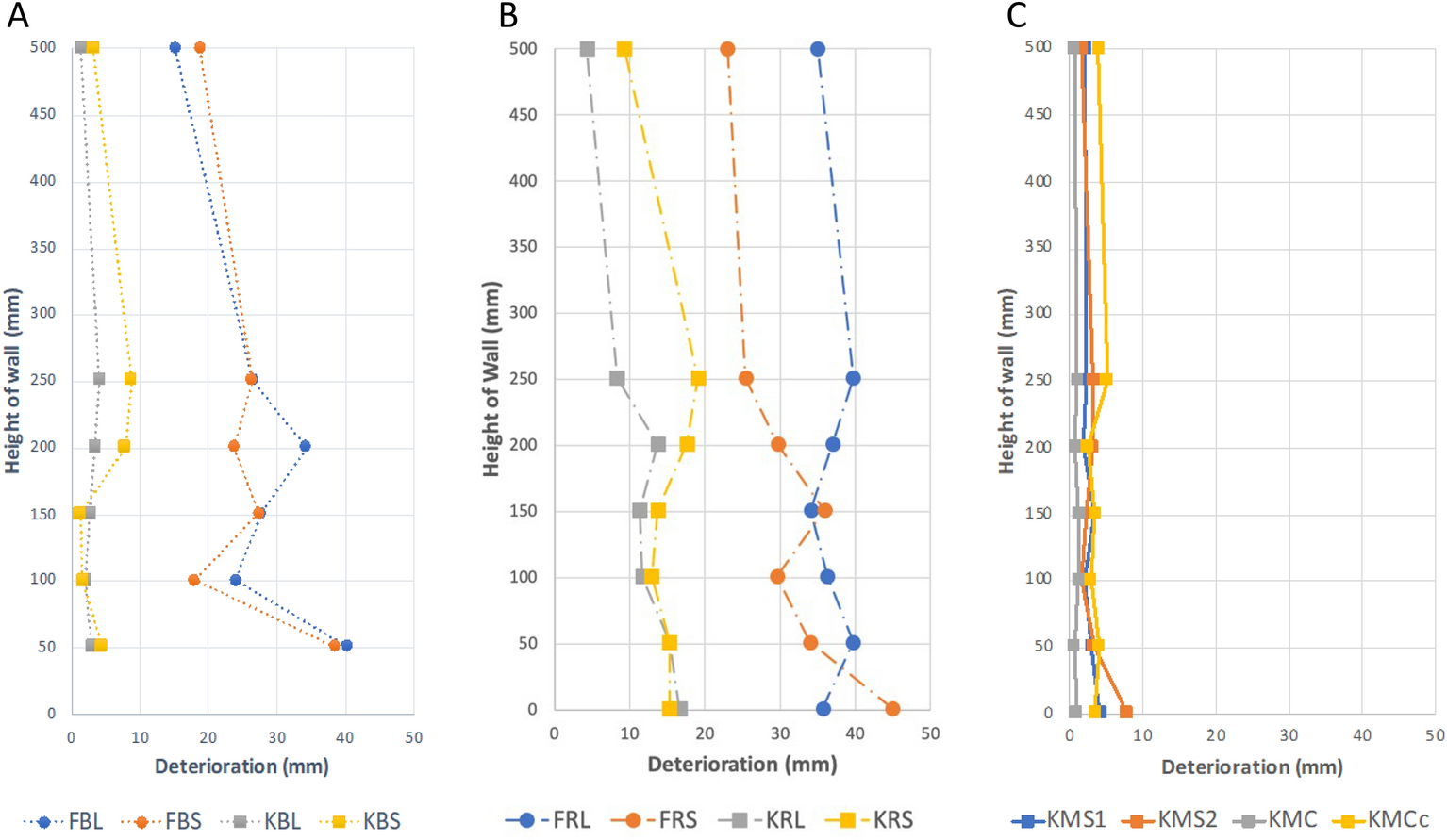

Fig. 12
From: Durability of Japanese-earth cob walls subjected to accelerated rain simulation
Vertical cross-seciton analysis of wall surfaces illustrating deterioration patterns at all heights of the test wall, at dry stage. A Average deterioration of Ball-series wall surfaces. B Average deterioration of Render-series wall surfaces. C Average deterioration of Monolithic-series wall surfaces
