Fig. 8
From: Durability of Japanese-earth cob walls subjected to accelerated rain simulation

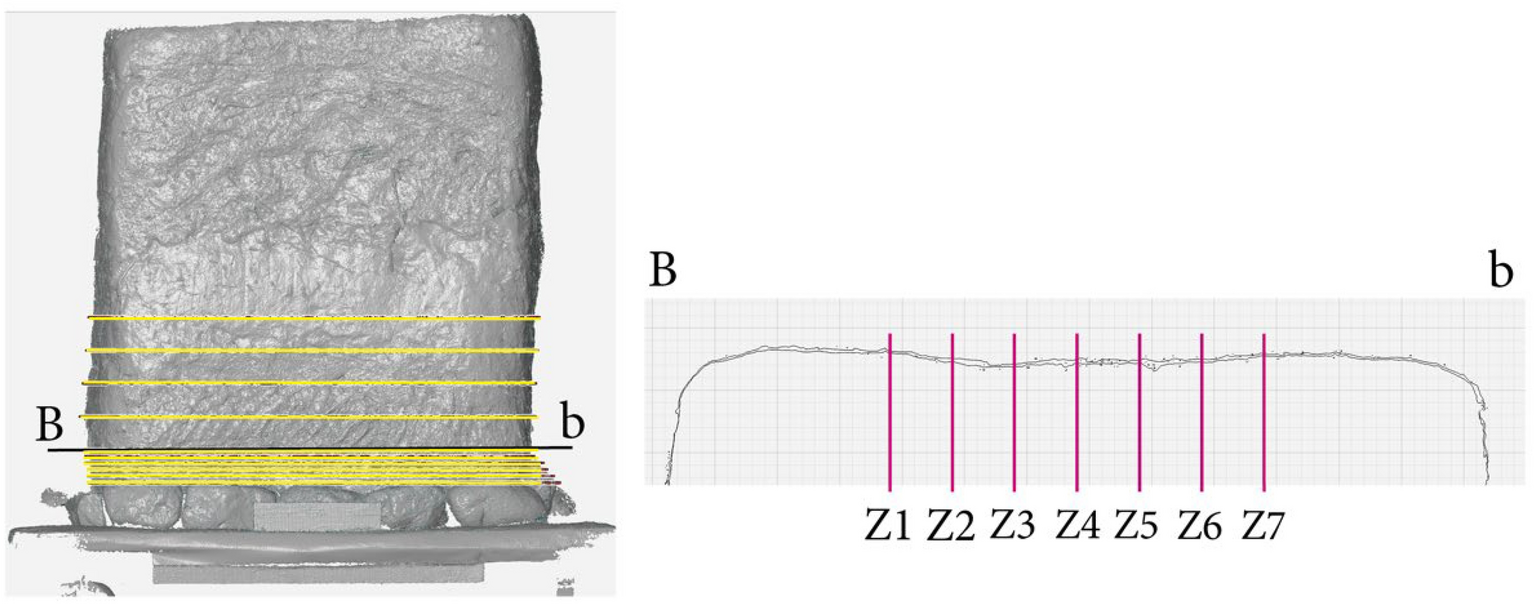

Analyzing M-series walls. This shows an example from wall surface KMS1. Left: Ten examination lines were identified; six in 10 mm intervals for the bottom 51 mm, and four in 50 mm intervals above that. Right: A combined mesh of pre- and post- experiment scans, along line B-b, as seen from the bottom. Deterioration measurements from Z1 to Z7 were averaged to provide a deterioration value for the central part of the M-series wall at this height
