Fig. 9
From: Durability of Japanese-earth cob walls subjected to accelerated rain simulation

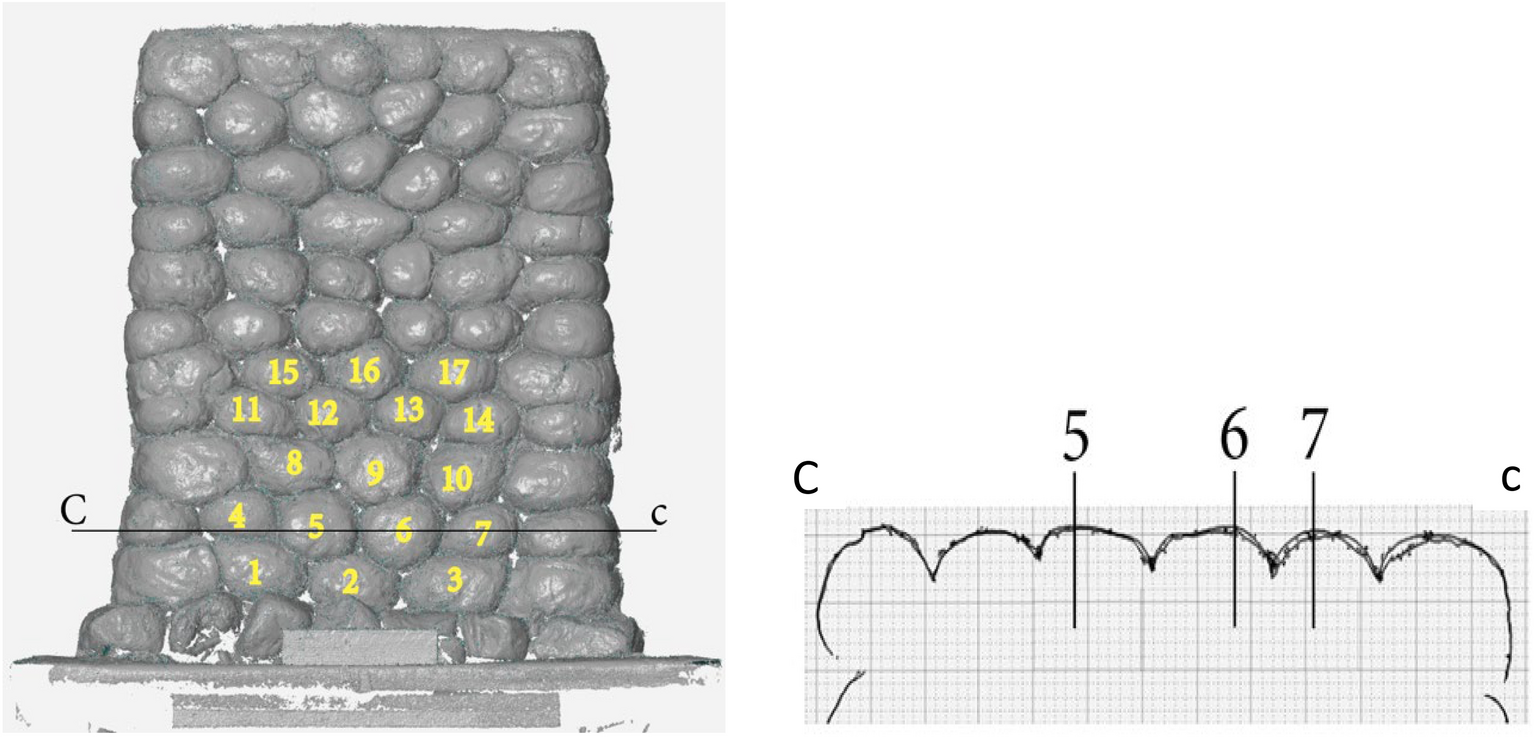

Analyzing B-series walls. This shows an example from wall surface KBS. Left: balls numbered to facilitate examination. Right: A comibined mesh of pre- and post- experiment scans. Deterioration was measured at the apex region of each ball. For balls 5, 6 and 7, the apex primarily occurred on the same horizontal line. Ball 4’s apex deterioration was measured from the combined mesh scans of a line slightly further up
