Fig. 9

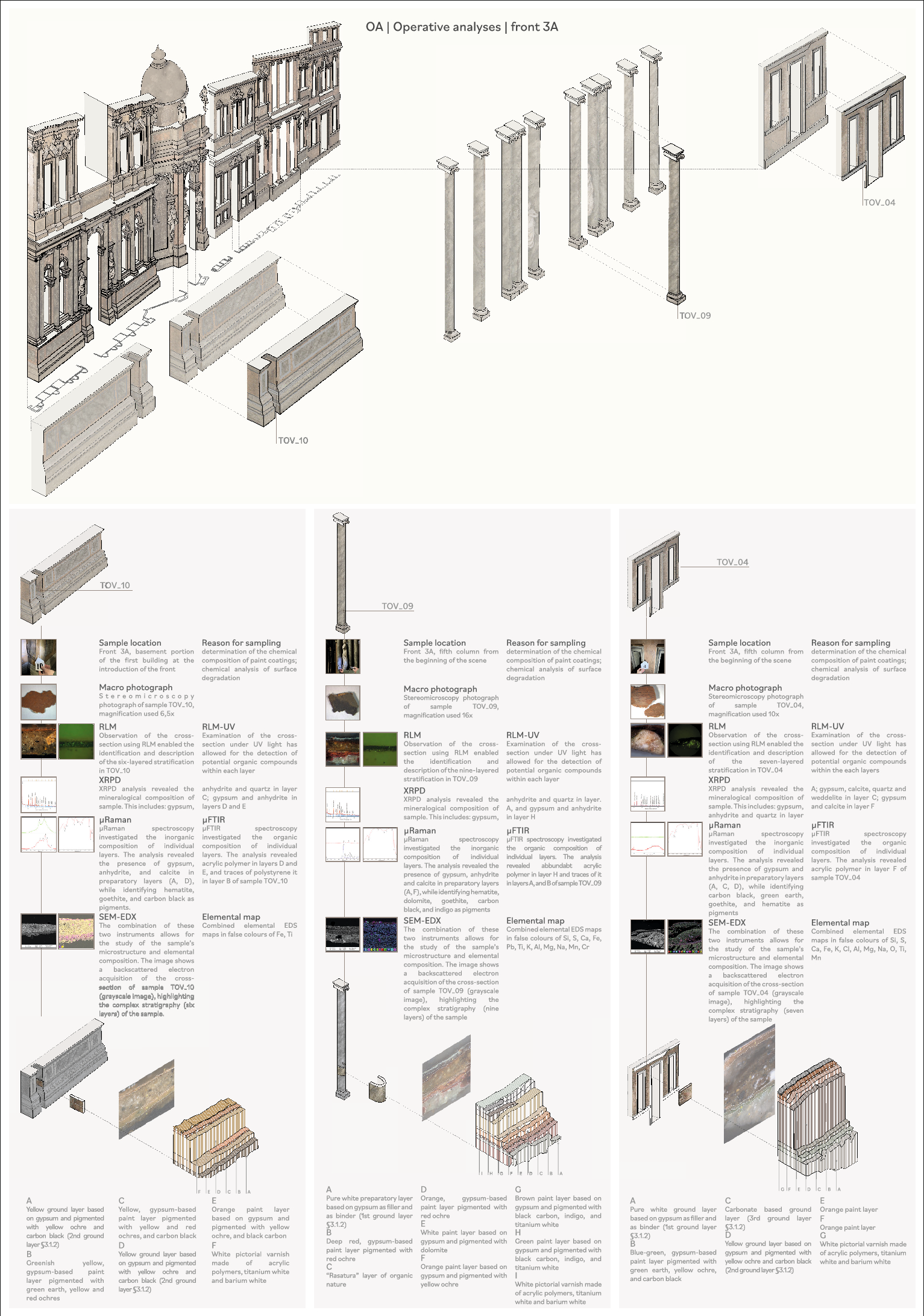

Isometric view of the 3A front of Scamozzi’s scenery for the Teatro Olimpico in Vicenza. The upper part of the figure shows Flat 3A broken down into its architectural components; the lower part shows the location of samples taken from three different points on the flat, the analyses to which each was subjected and the conclusions drawn with respect to the stratification of the paint and ground layers
