Fig. 12
From: Damage and restoration technology of historic buildings of brick and wood structures: a review

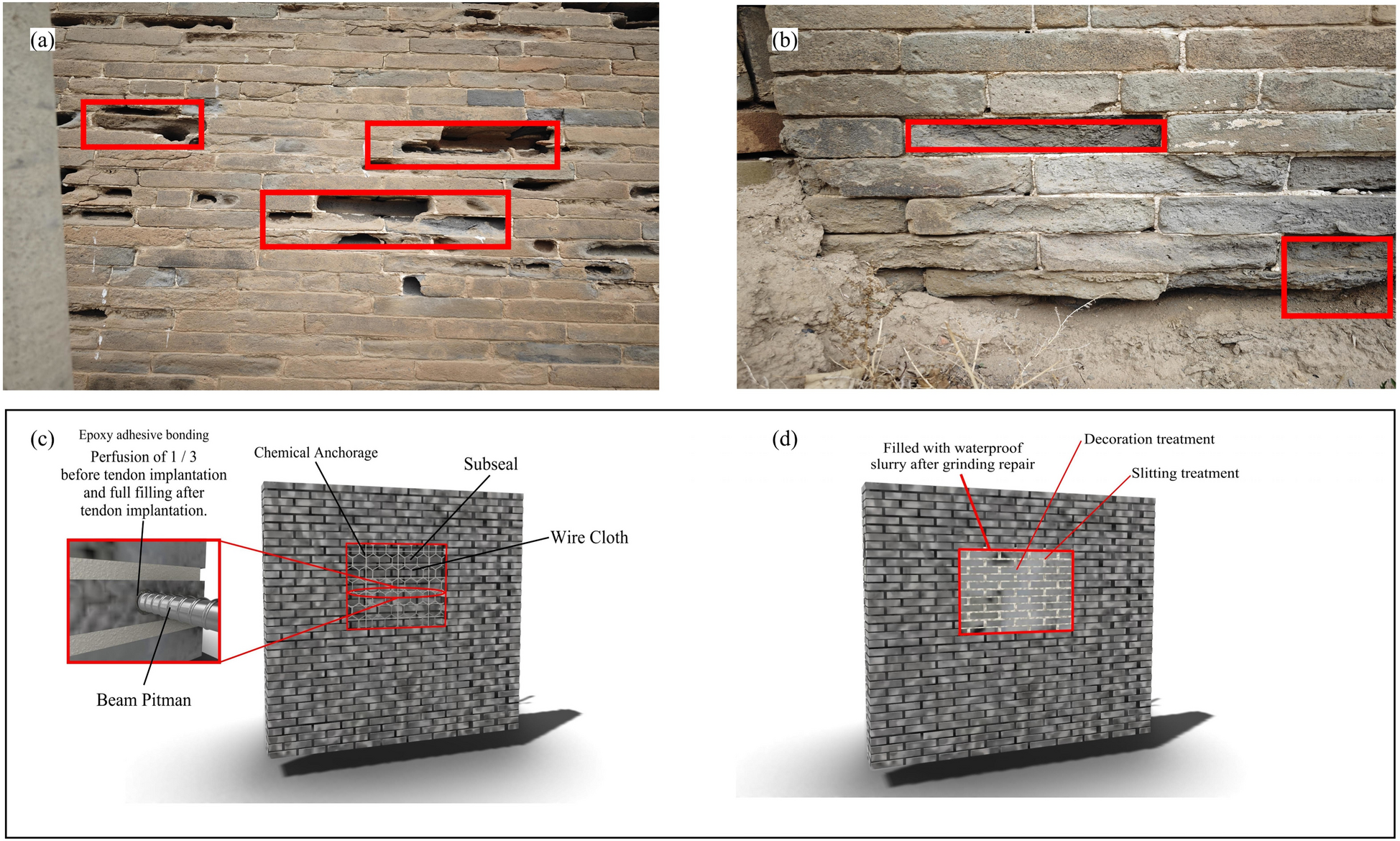

Ancient brick wall hook seam repair process. a Moderate damage in the middle of the wall (b) Moderate damage at the bottom of the wall. c Chemical planting bar and wall hanging net after basetreatment (d) Grouting grinding repair after hook joint construction and finishing treatment
