Fig. 18
From: Damage and restoration technology of historic buildings of brick and wood structures: a review

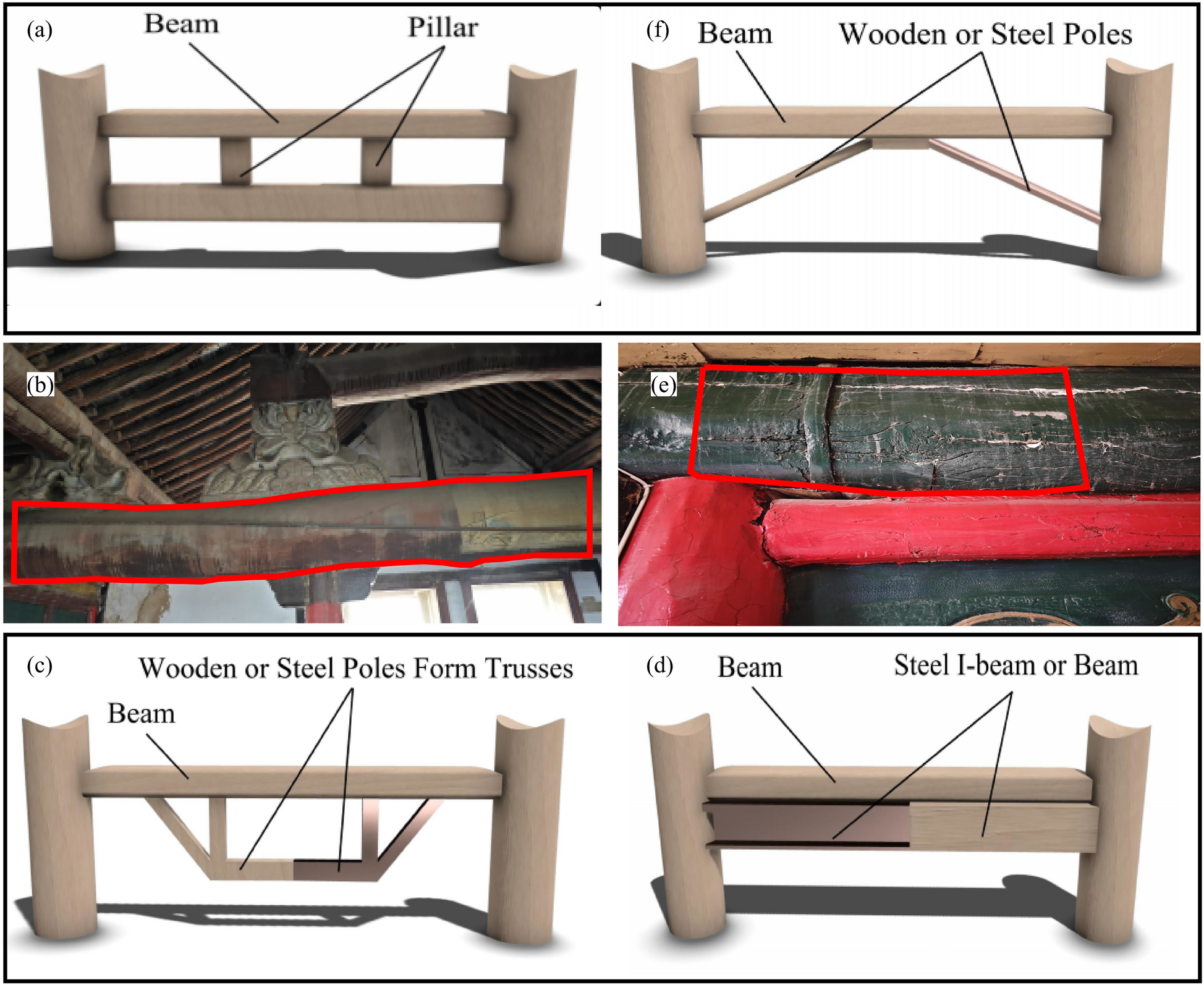

Schematic diagram of reinforcement and repair of beam and fangbeam. a Supporting-Roof Method (Pillar) (b) Bending of timber beams occurs. c Under-strut pull rod method (d) I-beam or attached beam Fangreinforcement. e Bending of the fang bar occurs (f) Supporting-roof method (Additional support)
