Fig. 19
From: Damage and restoration technology of historic buildings of brick and wood structures: a review

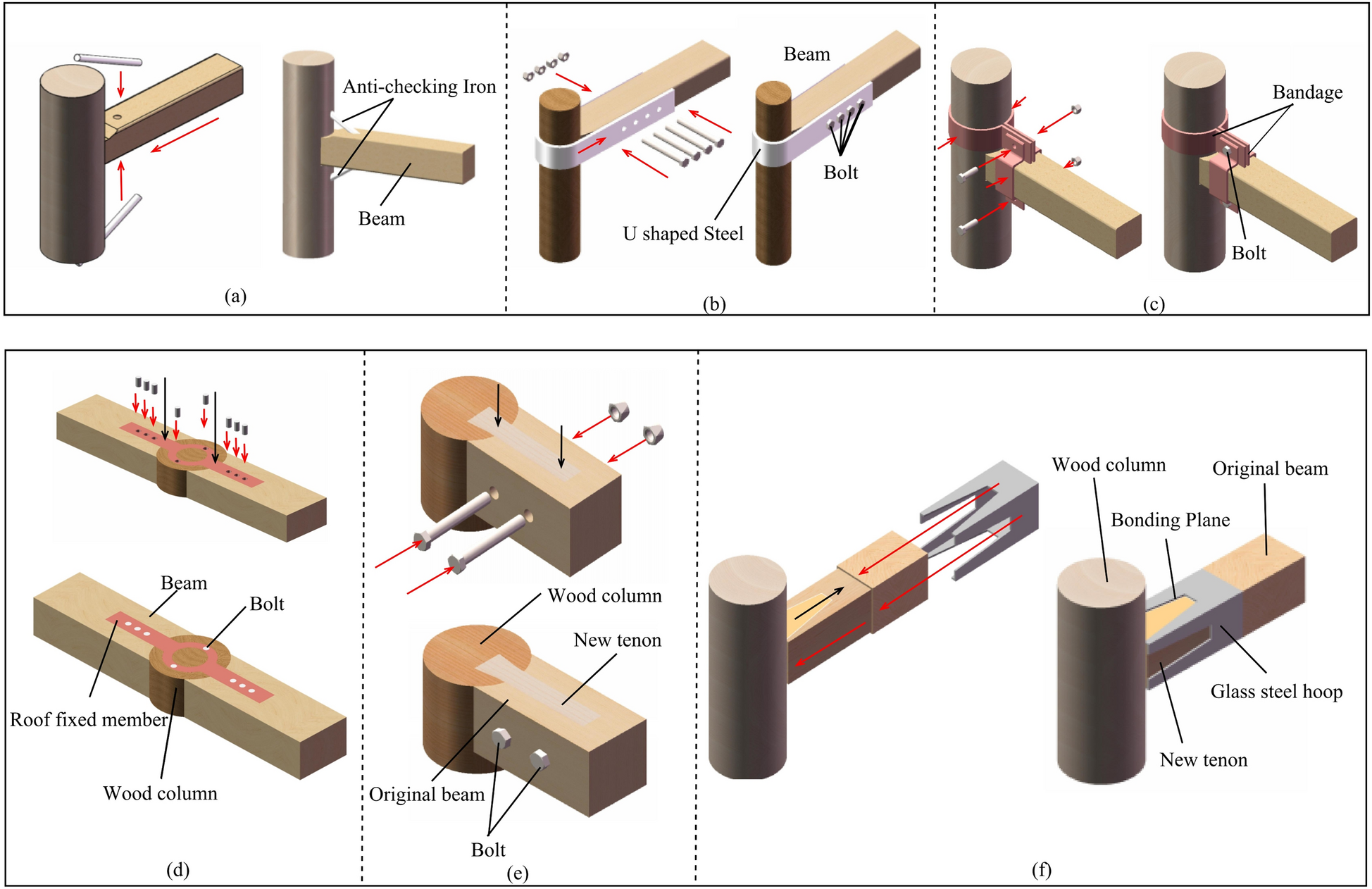

Schemdiagram of reinforcement of wood member. a Rivet connection member (b) U-shaped steel connection members (c) Tin-wrapped connection member (d) Top iron ring connection member (e) Rivets secure the new tenon (f) Steel hoops secure new tenon
