Fig. 8
From: Damage and restoration technology of historic buildings of brick and wood structures: a review

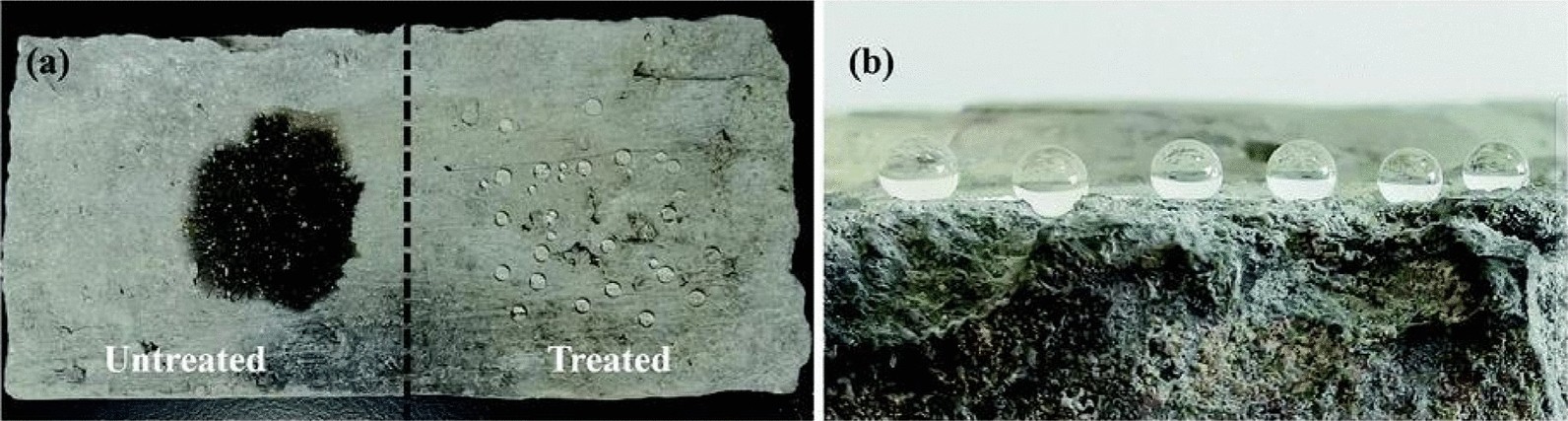

Comparison of Waterproof Coating [7] (a) A comparison chart of water droplets on the brick surface before and after coating treatment (b) A close-up view of the morphological characteristics of water droplets on the treated brick surface
