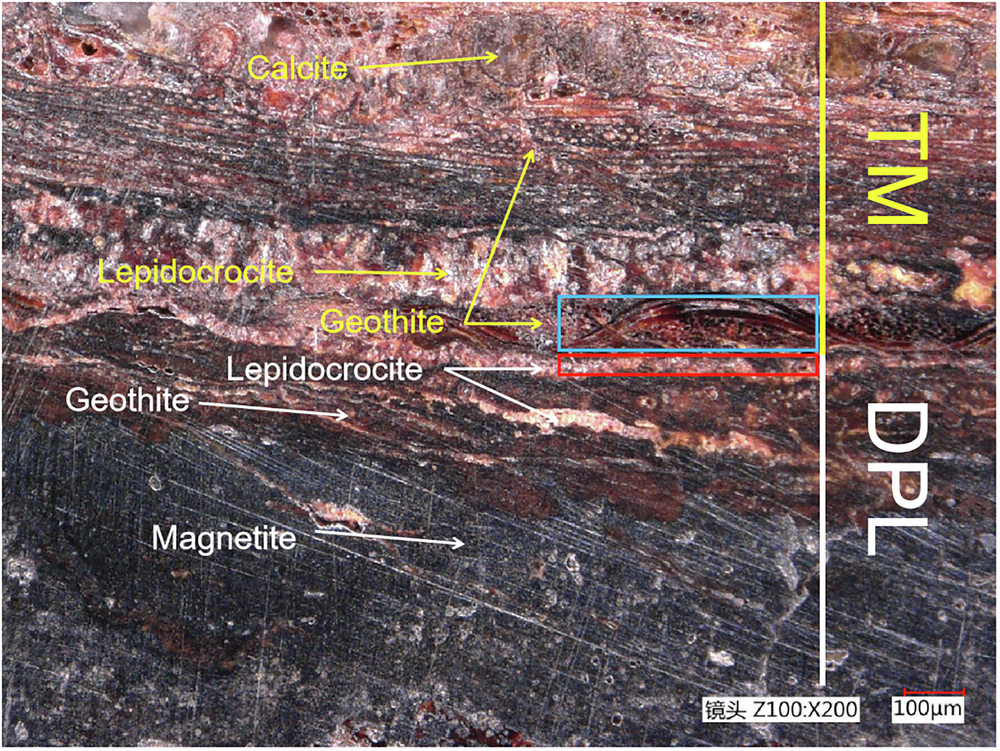

Fig. 3: Two main corrosion layers observed in C4 (M62:28).

the yellow marked external layer (TM) and the white marked internal layer (DPL); corrosion products detected in the interface between DPL and TM were goethite (blue box) and lepidocrocite (red box).
