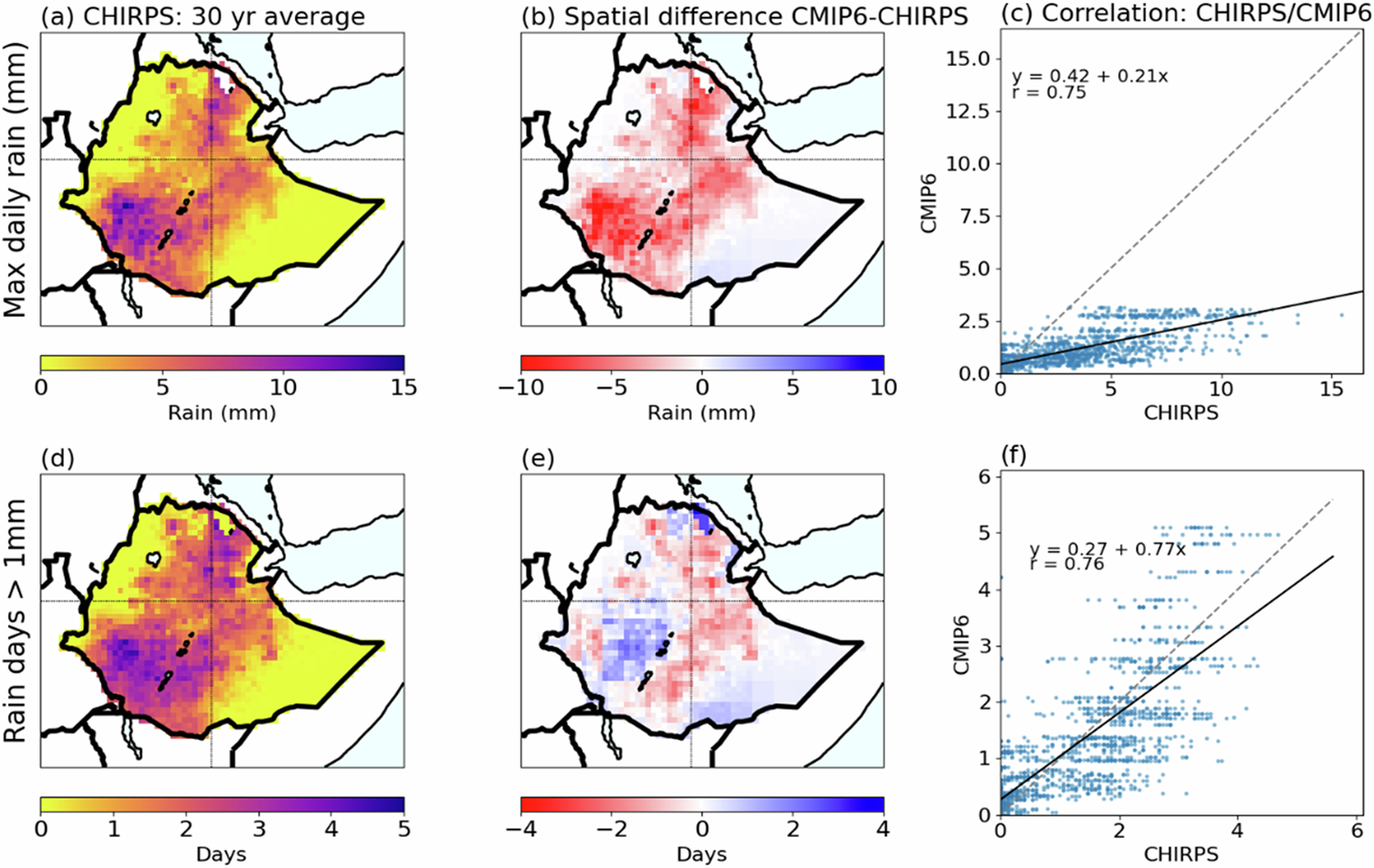

Fig. 7: A comparison of the modelled and observed precipitation metrics.
From: Climate metrics for modelling conditions on pilgrimages in Ethiopia
a–c Maximum daily rainfall and d–f rain days > 1 mm. These are calculated using: a, d the observed data, where yellow indicates less rainfall and blue indicates greater rainfall, b, e the difference between the modelled and observed data and c, f the association between the observed and modelled data. In b, e red indicates that the modelled data is drier than the observed dataset. The grey dotted line shows a one-to-one relationship and the black line the line of best fit.
