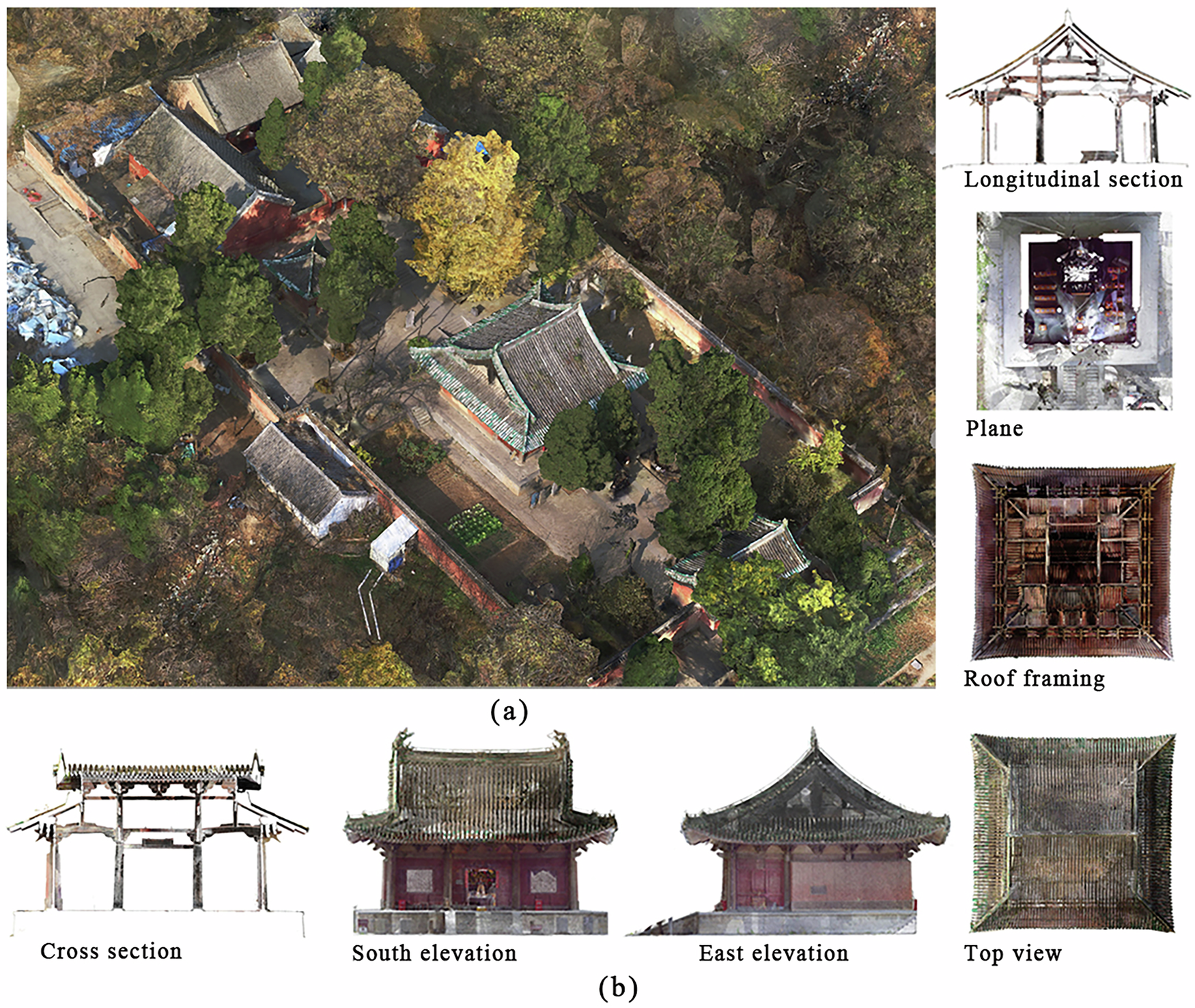

Fig. 14: 3D reality model and point cloud slice drawing.
From: HBIM for the protection and management: a case study of Chinese timber architectural heritage
a 3D reality model. b Point cloud slice drawing. It includes longitudinal section, plane, roof framing, top view, east elevation, south elevation and cross section.
