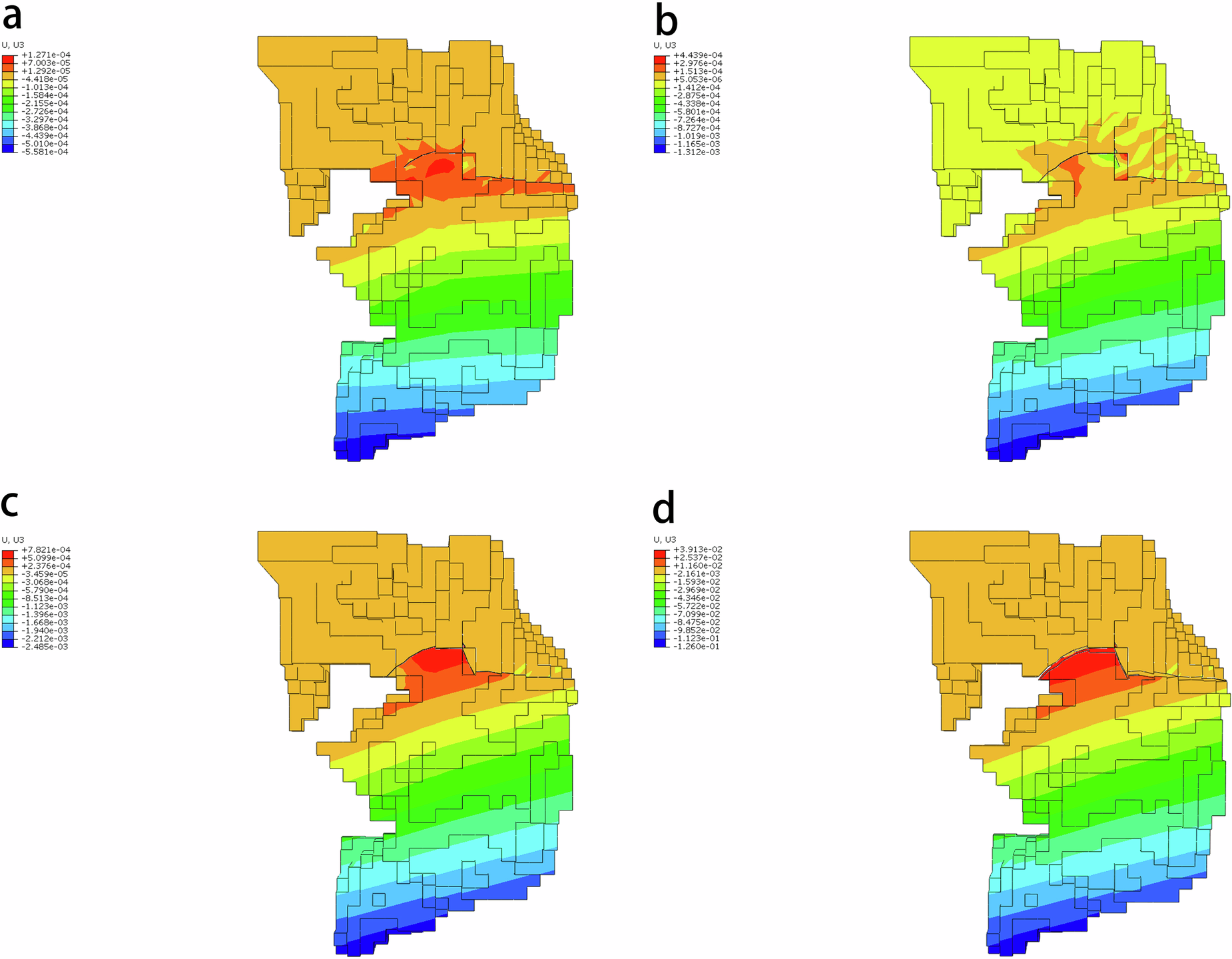

Fig. 14: Overall displacements from low risk to high risk.
From: Crack propagation risk threshold of classical garden rockeries based on LEFM
a Diagram of critical displacements from â… to â…¡, b diagram of critical displacements from â…¡ to â…¢, c crack through the rockery displacement diagram, and d extension end displacement diagram.
