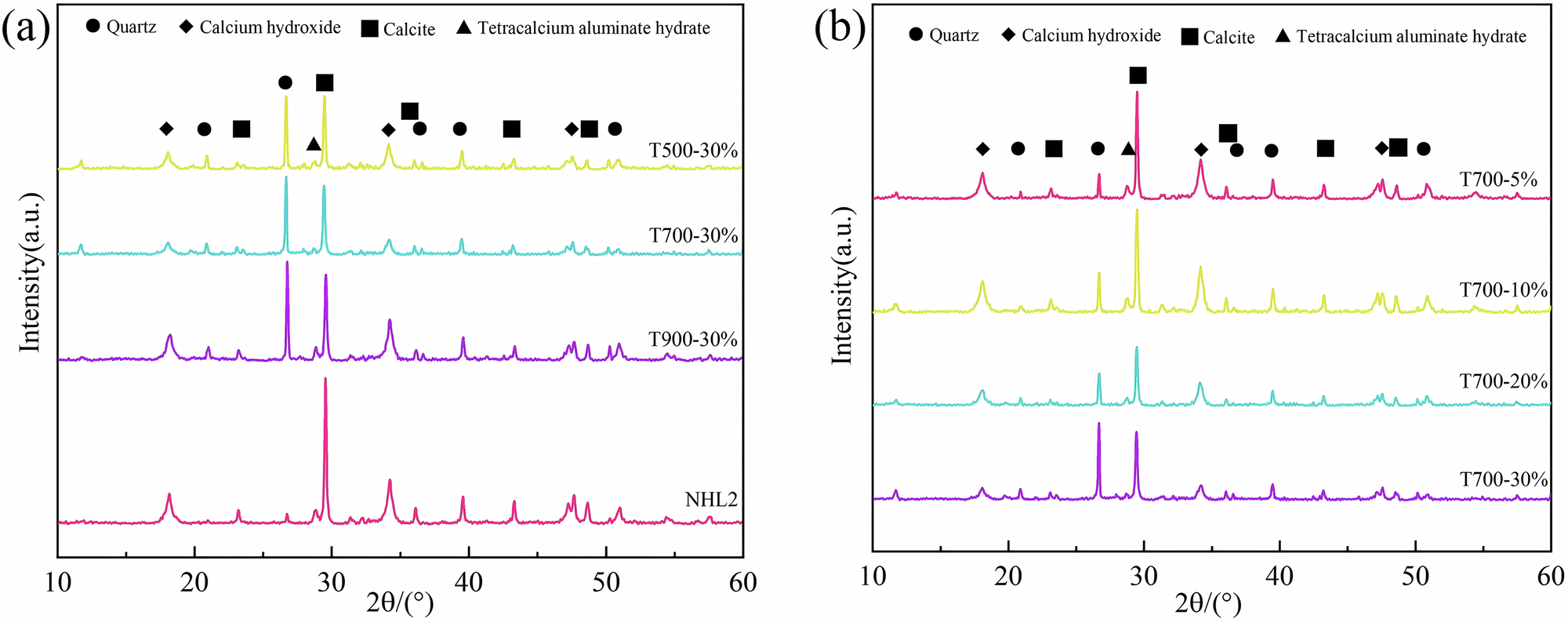

Fig. 12: XRD patterns of grout concretion specimens at 28 days.
From: Calcined clay’s effect on the performance and mechanism of natural hydraulic lime grouting material
a Different calcination temperatures and control group, b Different replacement ratio.
