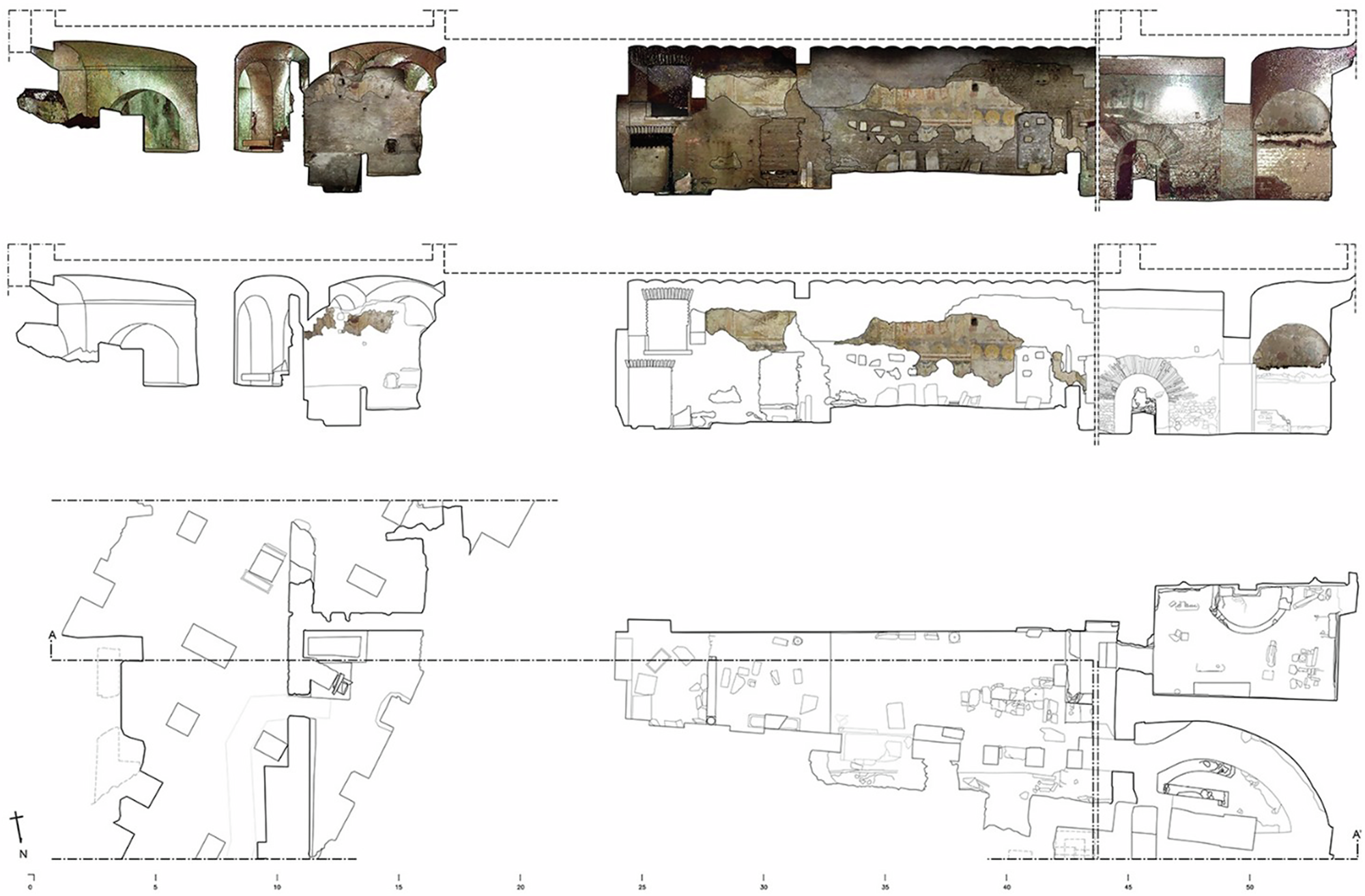

Fig. 16: Longitudinal section along the south side of the basilica.
From: The Basilica of Saint Chrysogonus in Rome: an integrated historical and 3d morphometric analysis
Top: visualisation of the point cloud with RGB visualisation; middle: 2D drawing representation integrated with orthoimages of frescoes; bottom: 2D drawing representation (processed by the authors).
