Fig. 6: The reconstruction of the engraving on stone number 7. | npj Heritage Science

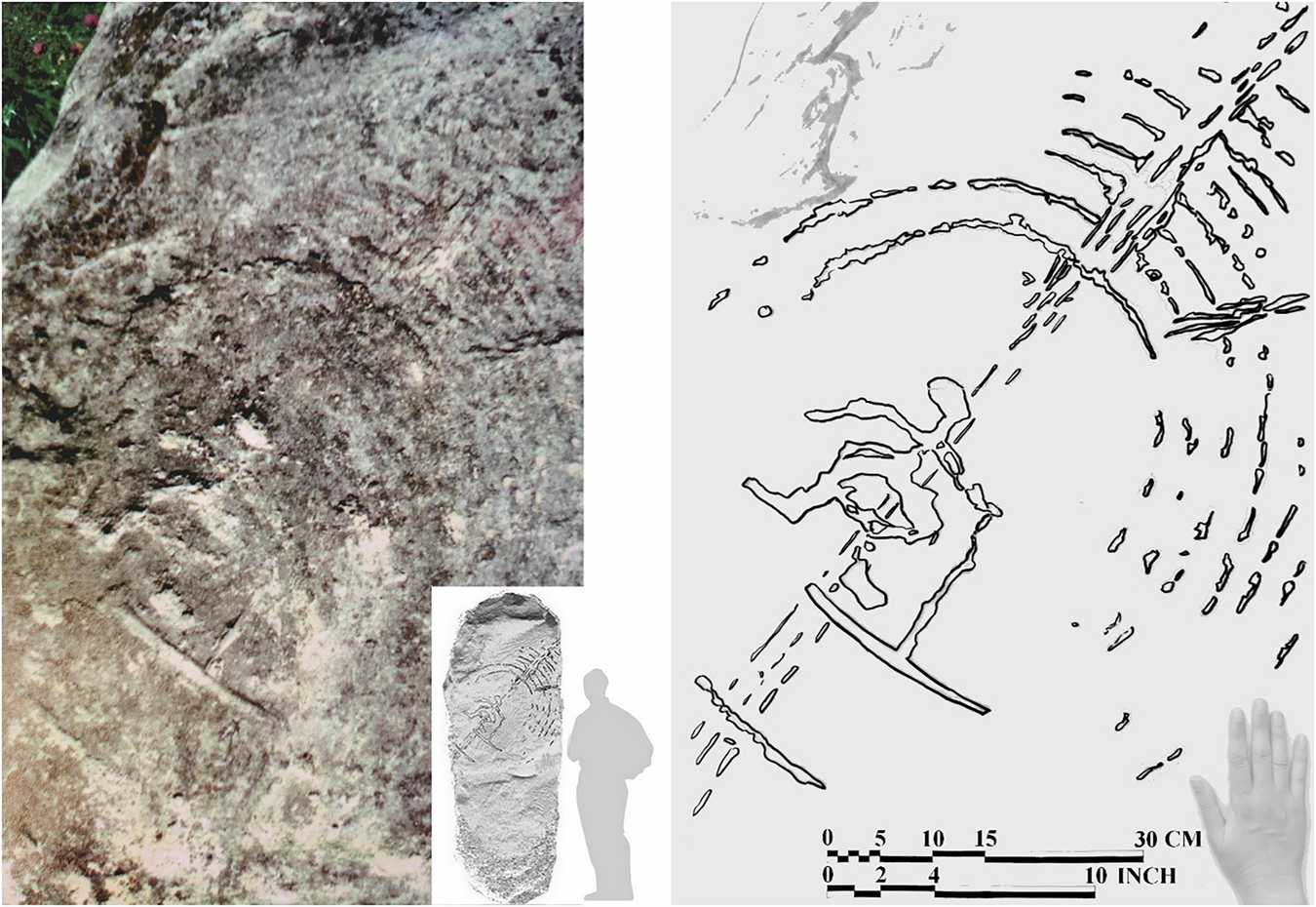

Fig. 6: The reconstruction of the engraving on stone number 7.

From: Rediscovered megalithic engravings in Slovakia: 3D reconstruction and comparative analysis of a forgotten Neolithic site

Fig. 6: The reconstruction of the engraving on stone number 7.The alt text for this image may have been generated using AI.

The figure may depict a human holding a tool, although the gender and precise function remain uncertain. The outer circle diameter is around 88 cm, 34.65 inches, the human figure is around 25 cm, 9.84 inches high. The circles have a distance of approximately 3.5 cm, 1.38 inches between the axes of the curves. The drawing was done after the visit of the site using paper on the stone to take significant morphological marks 10th of July 2025. The presented drawing and the photo are taken along its longitudinal axis of the stone on its eastern side. So, the depiction´s main line is in 50° angle to the longitudinal axis of the stone. (Source: left photo of Mr. Rudolf Irša, right full-scale drawing of the author).
