Fig. 8: Analysis of urban-water interactions in Guanxian (Contemporary).
From: Spatiotemporal urban-water interactions in upper Min River settlements within a triaxial framework

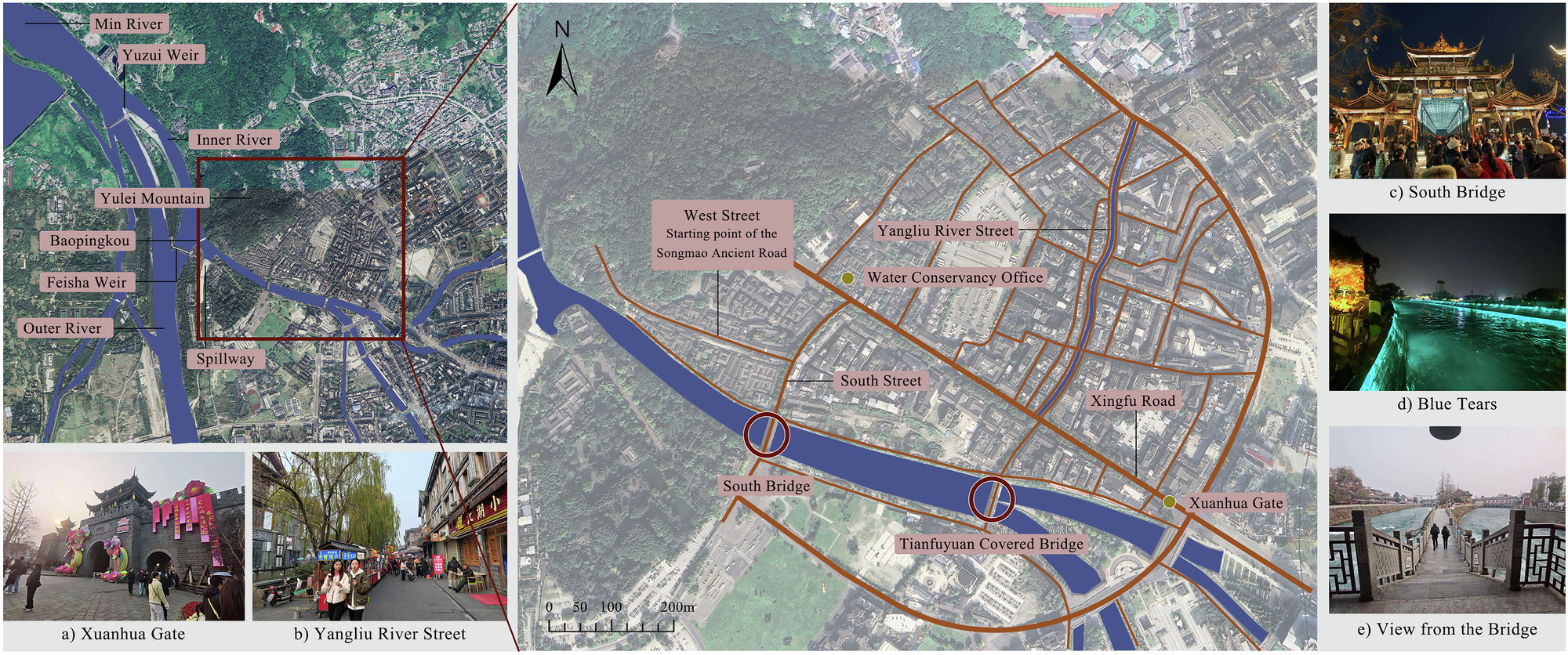

a Xuanhua Gate; b Yangliu River Street; c South Bridge; d “Blue Tears” water landscape; e View from the bridge. The large-scale spatial map on the left shows the primary hydraulic components. In the central detailed map, Thick dark blue lines represent the primary water system of the Dujiangyan irrigation system, and thin blue lines indicate the secondary urban water network. Solid brown lines represent the contemporary street network. Dark red circles mark the locations of key bridges.
