Fig. 20: Cloud maps of maximum principal stress in the rock under two temperature conditions.

From: The effect of temperature on the development of surface deterioration on the petroglyph-bearing rocks with black crust

Fig. 20: Cloud maps of maximum principal stress in the rock under two temperature conditions.

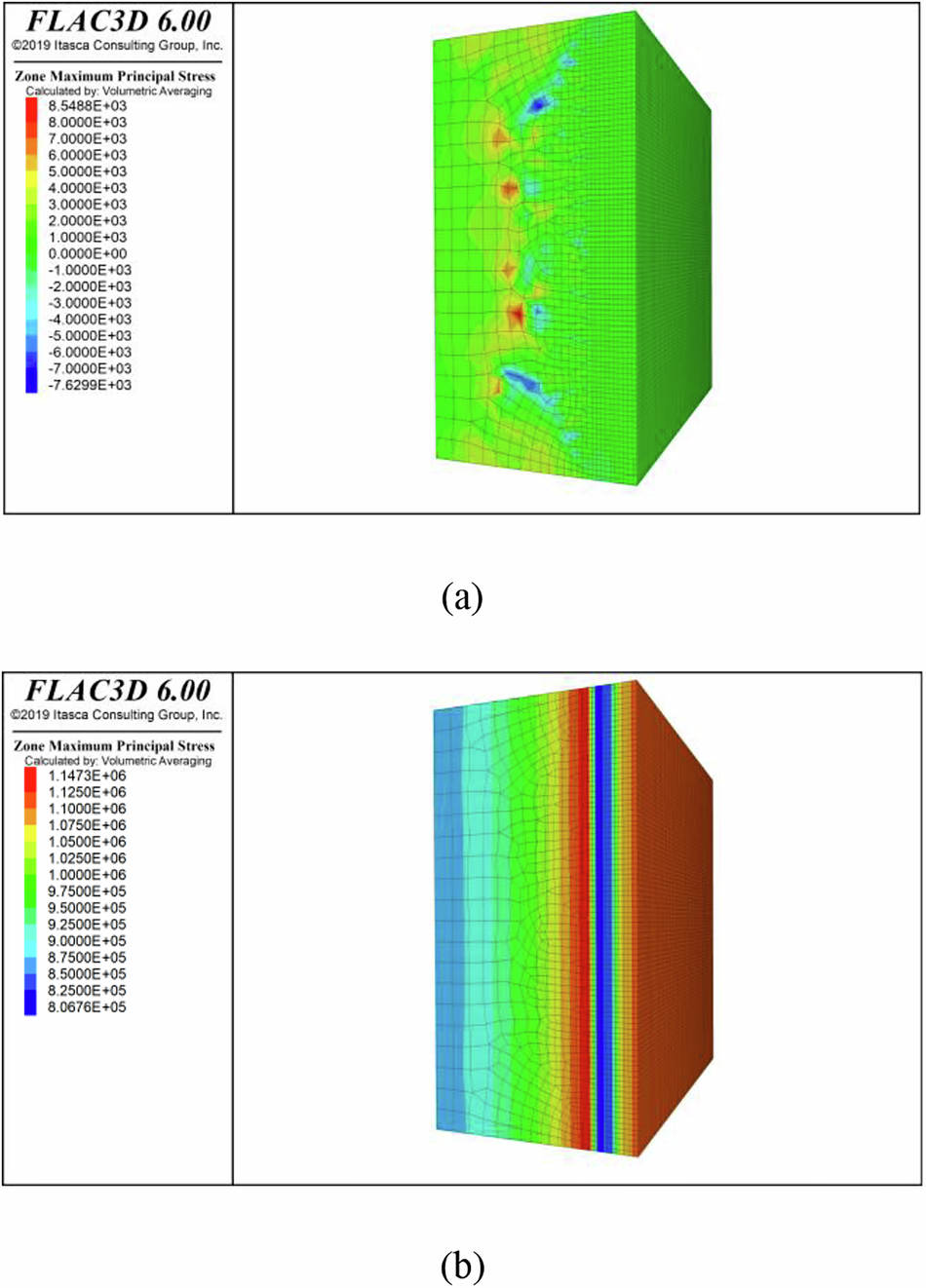

a Daily temperature fluctuation at time point 5; b Abrupt temperature change at time point 5. The figure presents cloud maps of the maximum principal stress within the petroglyph-bearing rock at a specific moment under daily temperature fluctuation and abrupt temperature change.
