Fig. 23: Variation curves of strain increment along the depth of the petroglyph-bearing rock at different time points under two temperature conditions. | npj Heritage Science

Fig. 23: Variation curves of strain increment along the depth of the petroglyph-bearing rock at different time points under two temperature conditions.

From: The effect of temperature on the development of surface deterioration on the petroglyph-bearing rocks with black crust

Fig. 23: Variation curves of strain increment along the depth of the petroglyph-bearing rock at different time points under two temperature conditions.

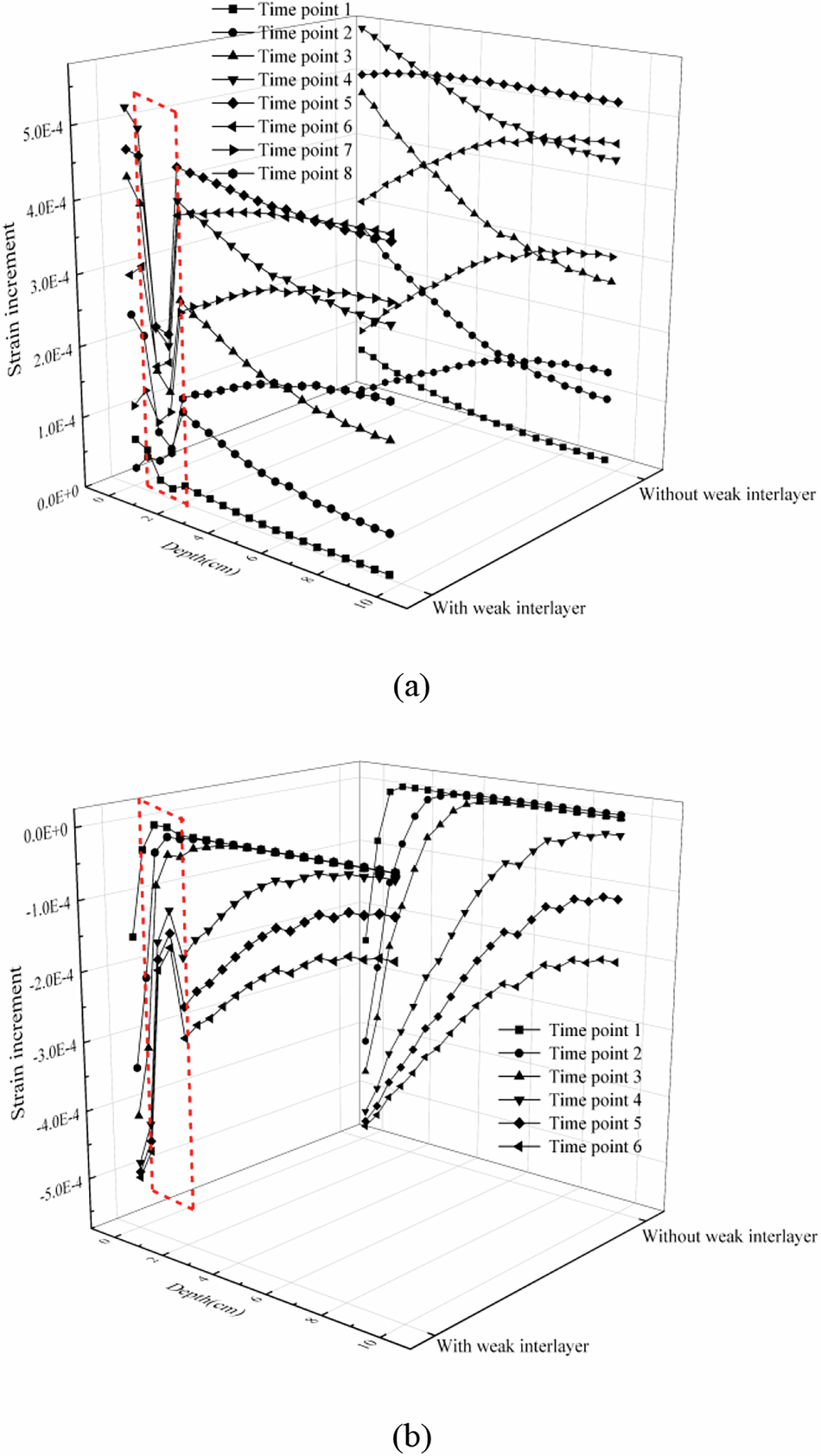

a Daily temperature fluctuations; b Abrupt temperature changes. The figure presents the variation curves of strain increment along the depth of the petroglyph-bearing rock at different times under daily temperature fluctuations and abrupt temperature changes.
