From: Haplotype analysis of endothelial nitric oxide synthase (NOS3) genetic variants and metabolic syndrome in healthy subjects and schizophrenia patients

Fig. 1

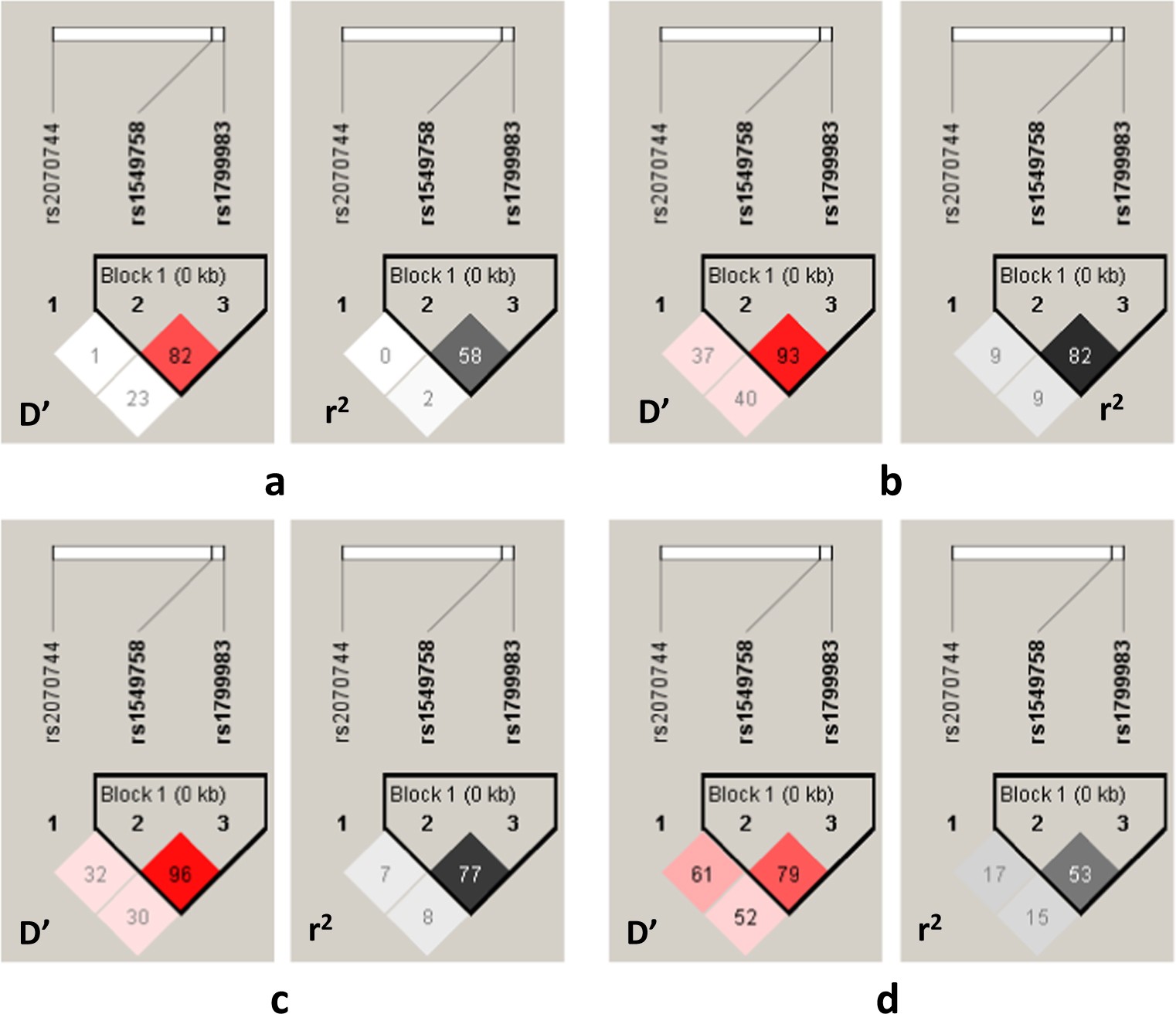

LD plot showing the positions of the three NOS3 gene polymorphisms in SCH patients with MetS (a), normal weight SCH patients (b), MetS patients (c), and healthy controls (d). Values in squares are the pairwise calculation of the LD coefficient D′ and the correlation coefficient r2 expressed in percentage. The color code in D′ plots follows the standard color D′/logarithm (base 10) of odds (LOD) scheme for Haploview: white, |D′| < 1, LOD < 2; shades of pink/red, |D′| < 1, LOD greater than or equal to 2. For r2 plots, different colors designate the extent of LD: for r2 LD plots white (r2 = 0), shades of gray (0 < r2 < 1), black (r2 = 1)
