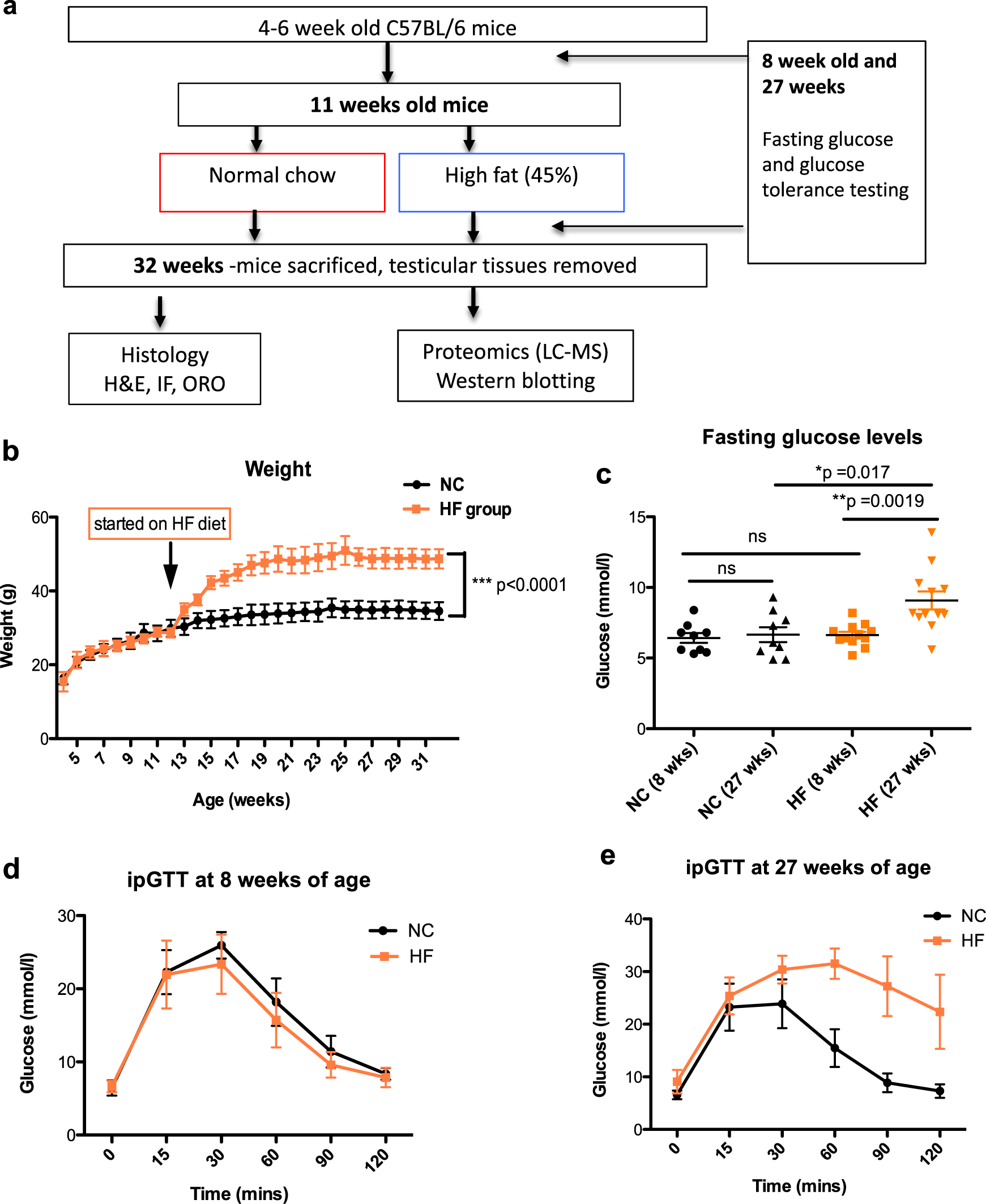

Fig. 1: Effects of the HF diet on body weight and glycaemic control.
From: High fat diet causes distinct aberrations in the testicular proteome
a Experimental set up and use of tissues. b Body weight. Mice were weighed weekly prior to and after receiving the HF (n = 9) or NC diets (n = 7). c Effect of HF diet on fasting glucose when mice were tested at 8 weeks of age when all were on the same diet and then repeated at 27 weeks of age (16 weeks after commencing HF diet) or ongoing NC diet. d Effect of HF diet on glucose and (e) glucose tolerance. Statistical analysis performed using 2-way ANOVA ***p < 0.001 comparing HF to control. Abbreviations Oil red O (ORO), Haematoxylin & Eosin (H&E), Immunofluorescence (IF), intraperitoneal glucose tolerance test (ipGTT).
