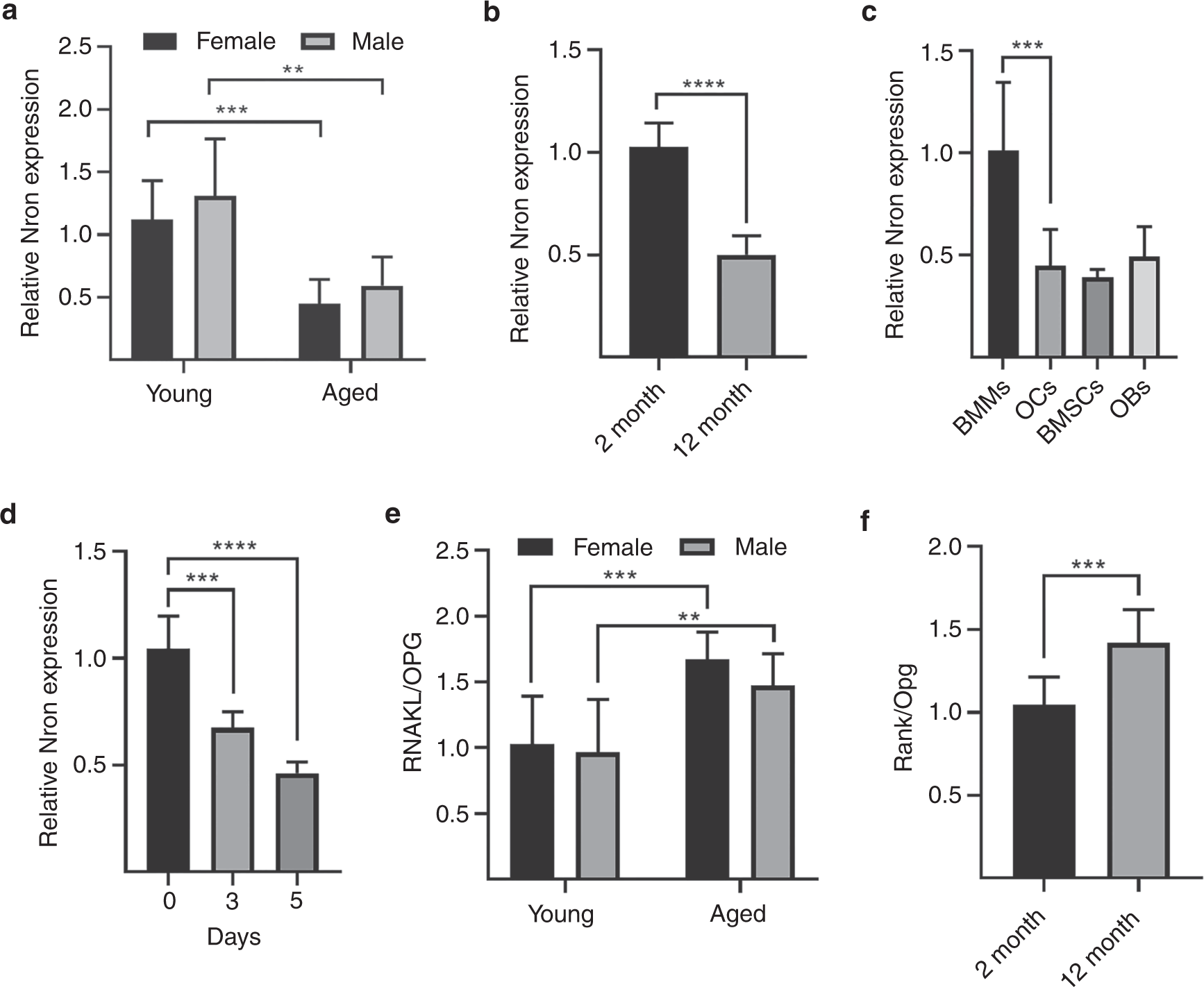

Fig. 1
From: LncRNA Nron regulates osteoclastogenesis during orthodontic bone resorption
Nron negatively correlates with osteoclast activity in alveolar bone. a RT-qPCR analysis of NRON expression in alveolar bone specimens from young and aged individuals; n = 8 per group. b RT-qPCR analysis of Nron expression in alveolar bone specimens from 2-month-old and 12-month-old WT mice; n = 8 per group. c RT-qPCR analysis of Nron expression in BMMs, OCs, BMSCs and OBs from 2-month-old WT mice. BMMs, bone marrow-derived macrophages; OCs, osteoclasts; BMSCs, bone marrow stromal cells; OBs, osteoblasts. n = 8 per group. d RT-qPCR analysis of Nron expression in BMMs from 2-month-old WT mice during osteoclast differentiation; n = 6 per group. e RT-qPCR analysis of RANKL/OPG expression in alveolar bone specimens from young and aged individuals; n = 8 per group. f RT-qPCR analysis of Rankl/Opg expression in alveolar bone specimens from 2-month-old and 12-month-old WT mice; n = 6 per group. RT-qPCR quantitative reverse transcription polymerase chain reaction. GAPDH and Gapdh were used as endogenous controls in RT-qPCR analysis of human and mouse specimens, respectively. Data are presented as the mean ± SD. *P < 0.05, **P < 0.01, ***P < 0.001, ****P < 0.000 1
