Fig. 6

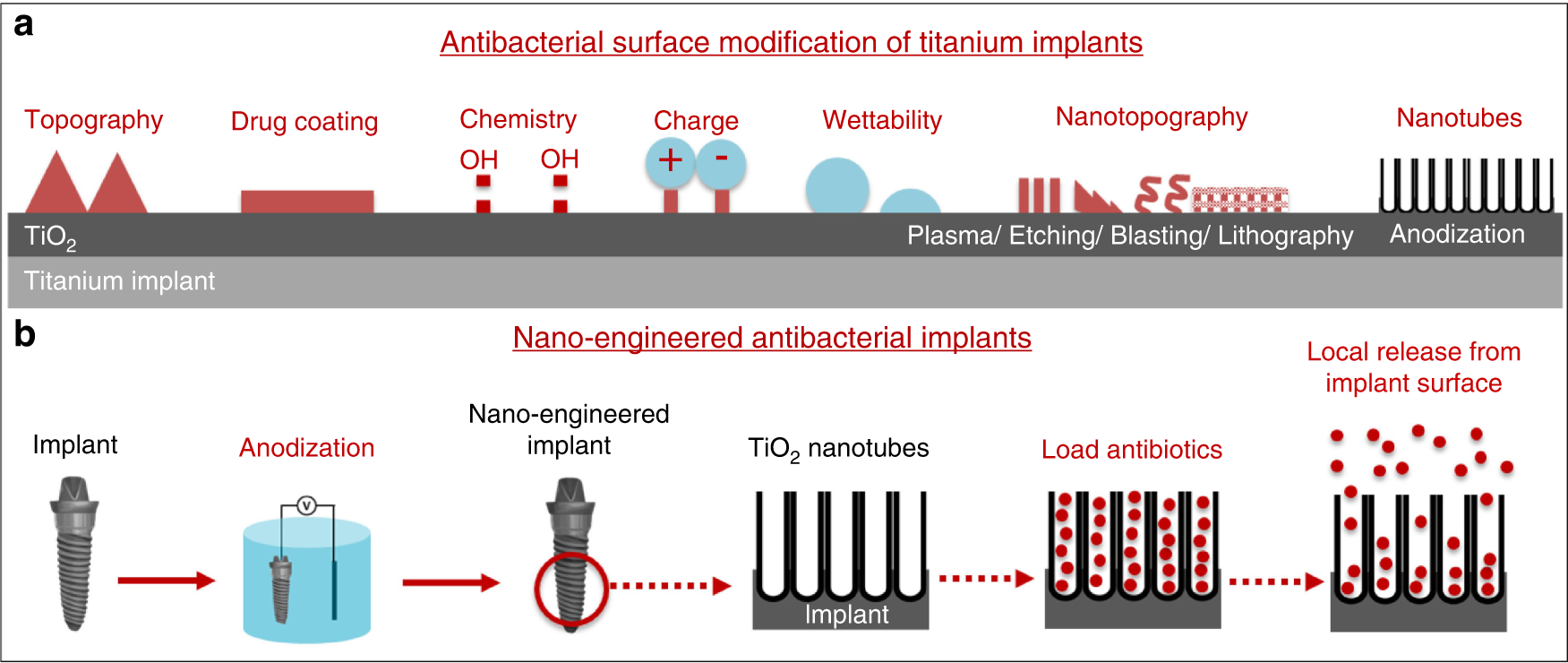

Antibacterial surface modification of Ti implants. Schematic representation: a various physical/chemical surface modifications; and b electrochemically anodised Ti implants with TiO₂ nanotubes towards local elution of antibiotics. Adapted with permission from ref. ¹⁴⁰
