Fig. 3
From: Magnesium promotes vascularization and osseointegration in diabetic states

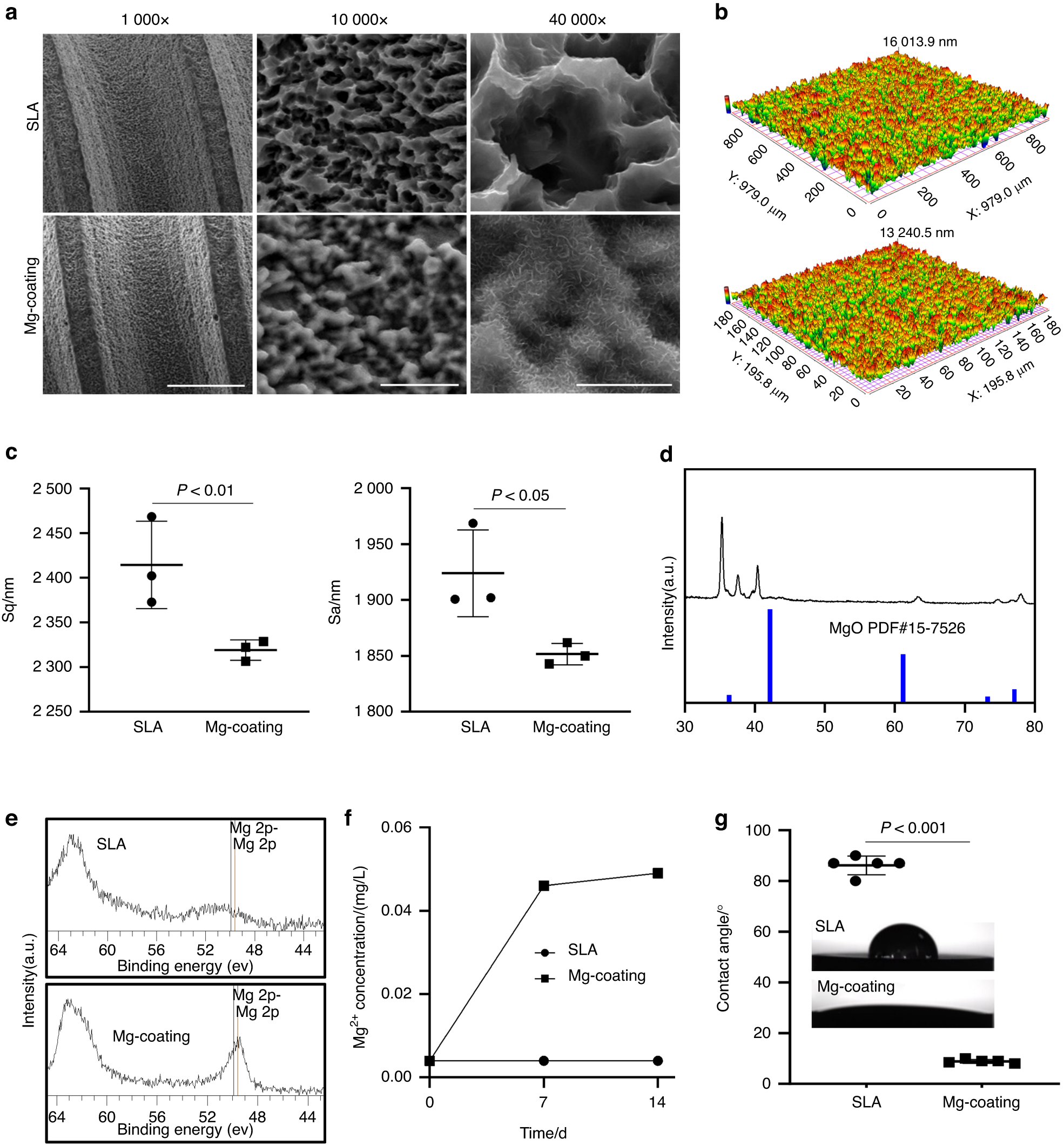

Synthesis and characterization of Mg-coating implants. a SEM scanning images of the implants. Scale = 100 μm, 10 μm, 5 μm in turn. b, c Surface topography of the samples. d, e XPS and XRD showed the elemental composition of the samples. f The release of Mg2+. g Contact angle and representative images of droplets on different samples (n = 5)
