Fig. 4 | International Journal of Oral Science

Fig. 4

From: Cuproptosis-related lncRNA JPX regulates malignant cell behavior and epithelial-immune interaction in head and neck squamous cell carcinoma via miR-193b-3p/PLAU axis

Fig. 4

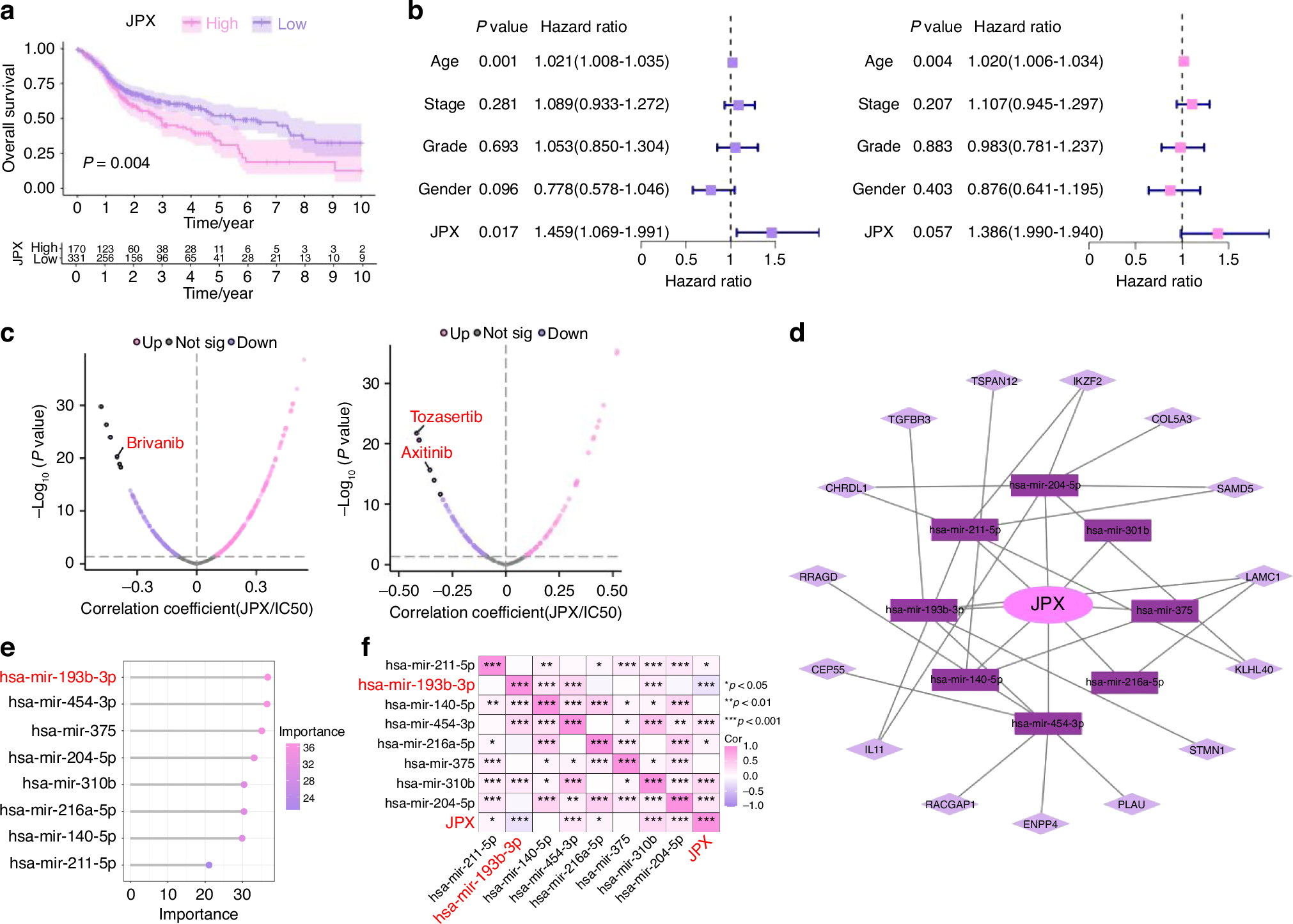

Functional analysis of JPX. a Kaplan–Meier Curves for differential survival of JPX high-expression and JPX low-expression subgroups. b Cox regression analysis of age, stage, grade, gender, and JPX. c Drug sensitivity analysis of JPX high-expression and JPX low-expression subgroups. d JPX-based ceRNA network. e 8 miRNAs were identified as finial markers with importance > 24. f Spearman’s correlation coefficient analysis of the miRNAs and JPX. Spearson correlation analysis: *P < 0.05, **P < 0.01, and ***P < 0.001
