From: Single-cell and spatial transcriptomics reveals an anti-tumor neutrophil subgroup in microwave thermochemotherapy-treated lip cancer

Fig. 7

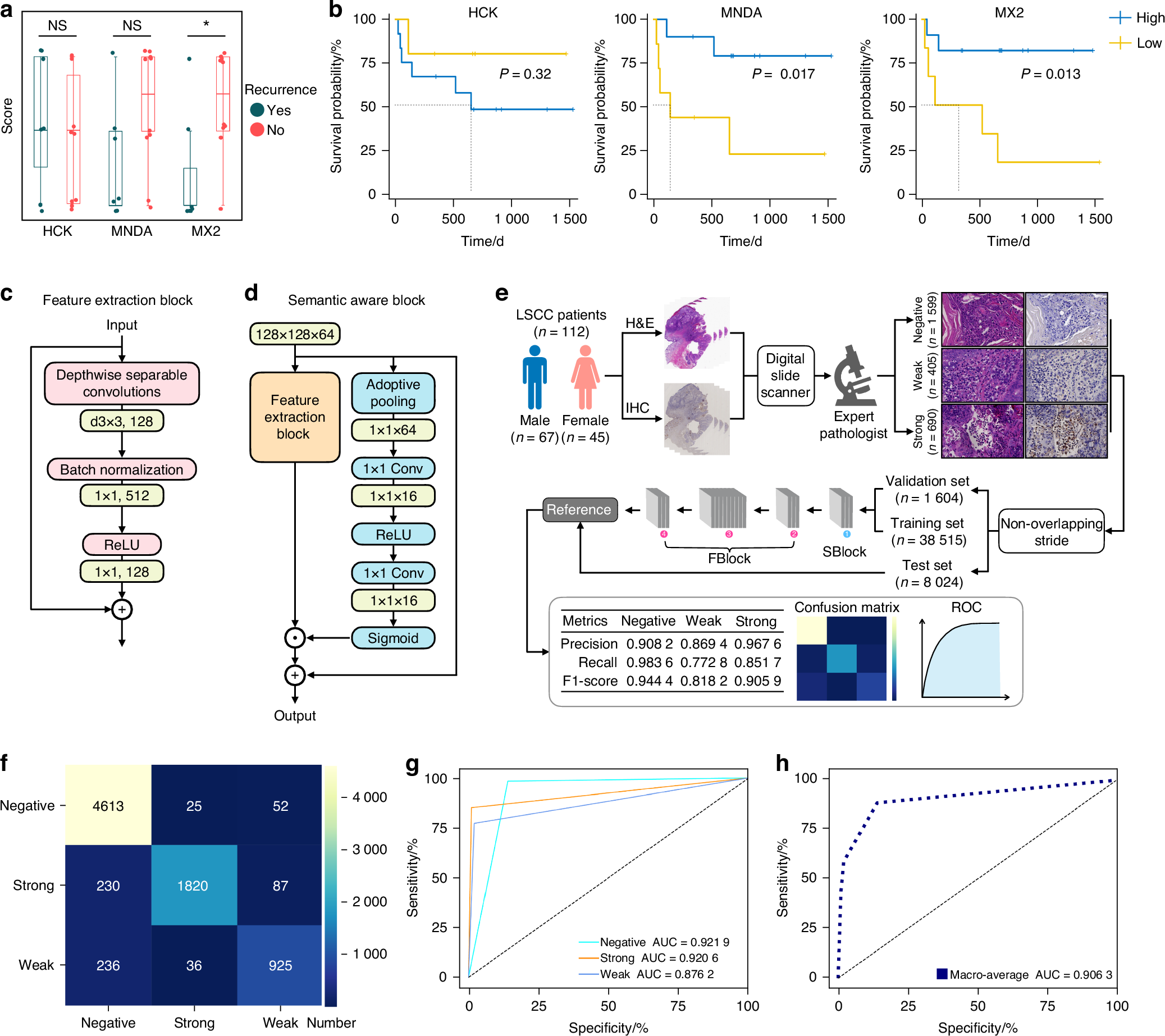

Deep learning models for N1-TANs related makers. a Quantitative comparison of HCK, MNDA, and MX2 staining intensity between relapse and non-relapse groups. b Recurrence-free survival with different expression levels of HCK, MNDA, and MX2. c Flowchart of FBlock. d Flowchart of SBlock. e Schematic diagram of the deep learning model. f Heatmap showing the confusion matrix of the FSNet. g, h The ROC curves and AUC values of FSNet. A Kaplan-Meier curve was constructed to illustrate overall survival (OS). The mean values across groups were compared using a 2-tailed Student’s t-test
