Fig. 5
From: Single-cell spatial atlas of smoking-induced changes in human gingival tissues

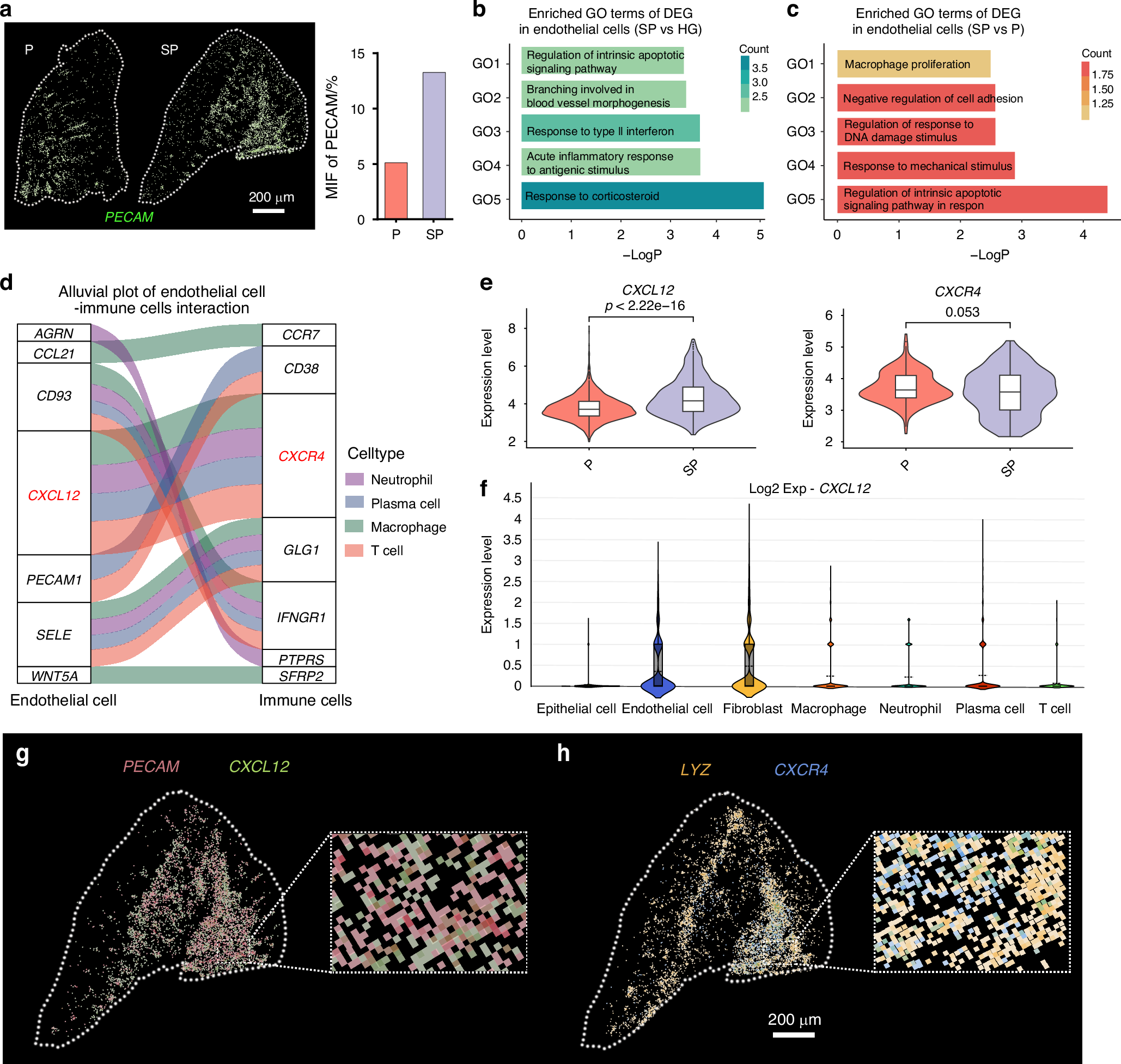

Endothelial cell damage in the gingiva is an important factor contributing to the immune microenvironment disruption. a Visium HD data analysis revealing the relative expression levels of PECAM (marker gene of endothelial cells). b Bar plots showing enriched GO terms of DEGs (SP group vs. HG group) in endothelial cells. c Bar plots showing enriched GO terms of DEGs (SP group vs. P group) in endothelial cells. d Alluvial plot showing the interaction of endothelial cells–immune cells. e Visium HD data analysis revealing the relative expression levels of CXCL12 and CXCR4 in the gingival tissue. f Violin plot showing the relative expression levels of CXCL12 in each cell subgroup. g Visium HD data analysis revealing the colocalization of PECAM + cells and CXCL12+ cells. h Visium HD data analysis revealing the colocalization of LYZ+ cells and CXCR4+ cells
