Fig. 3: Correlation plots.

From: Derivation of human toxicokinetic parameters and internal threshold of toxicological concern for tenuazonic acid through a human intervention trial and hierarchical Bayesian population modeling

Fig. 3

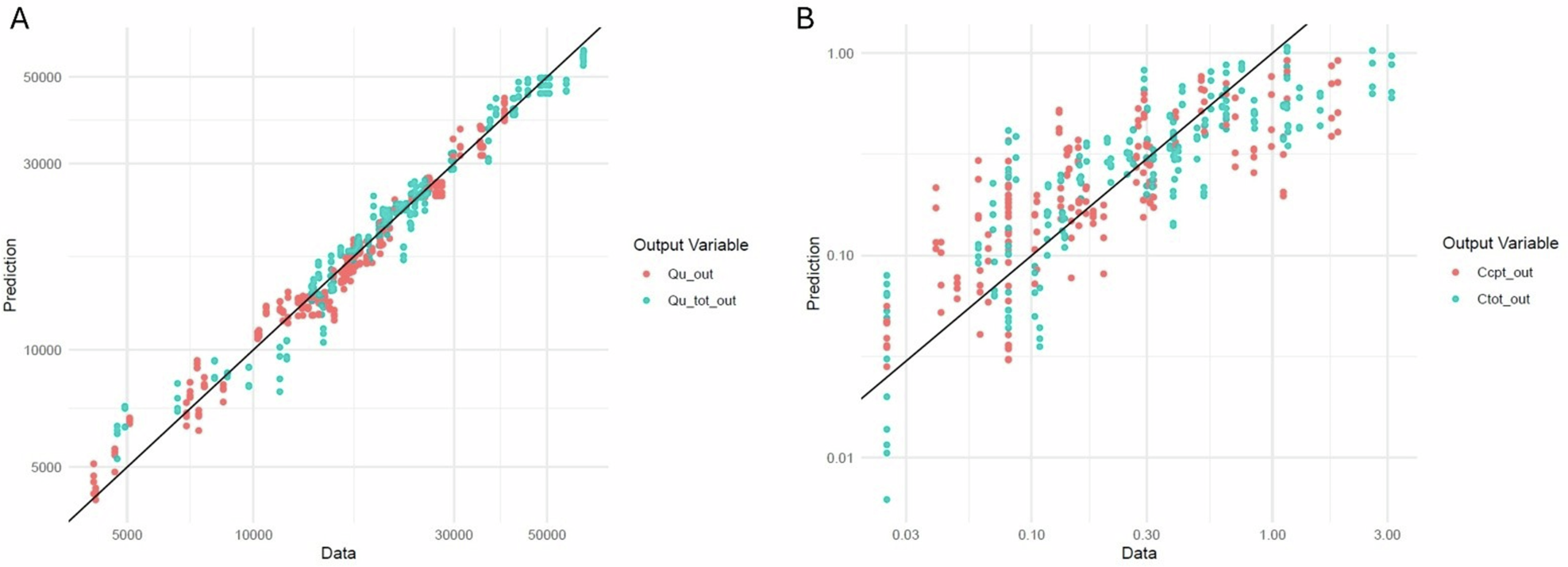

Correlation plots showing the predicted values versus observed data for the mass of TeA and its phase-II metabolites excreted in urine (A) and the blood concentration of TeA (B). Qu_out mass of TeA in urine, Qu_tot_out mass of TeA and its phase-II metabolites in urine, Ccpt_out concentration of TeA in blood, Ctot_out concentration of TeA and its phase-II metabolites in blood.
