Fig. 2: SBP response shapes derived by group-based trajectory modelling (GBTM).

From: The shape of the systolic blood pressure response during graded exercise: methodology, correlates and predictive value

Fig. 2

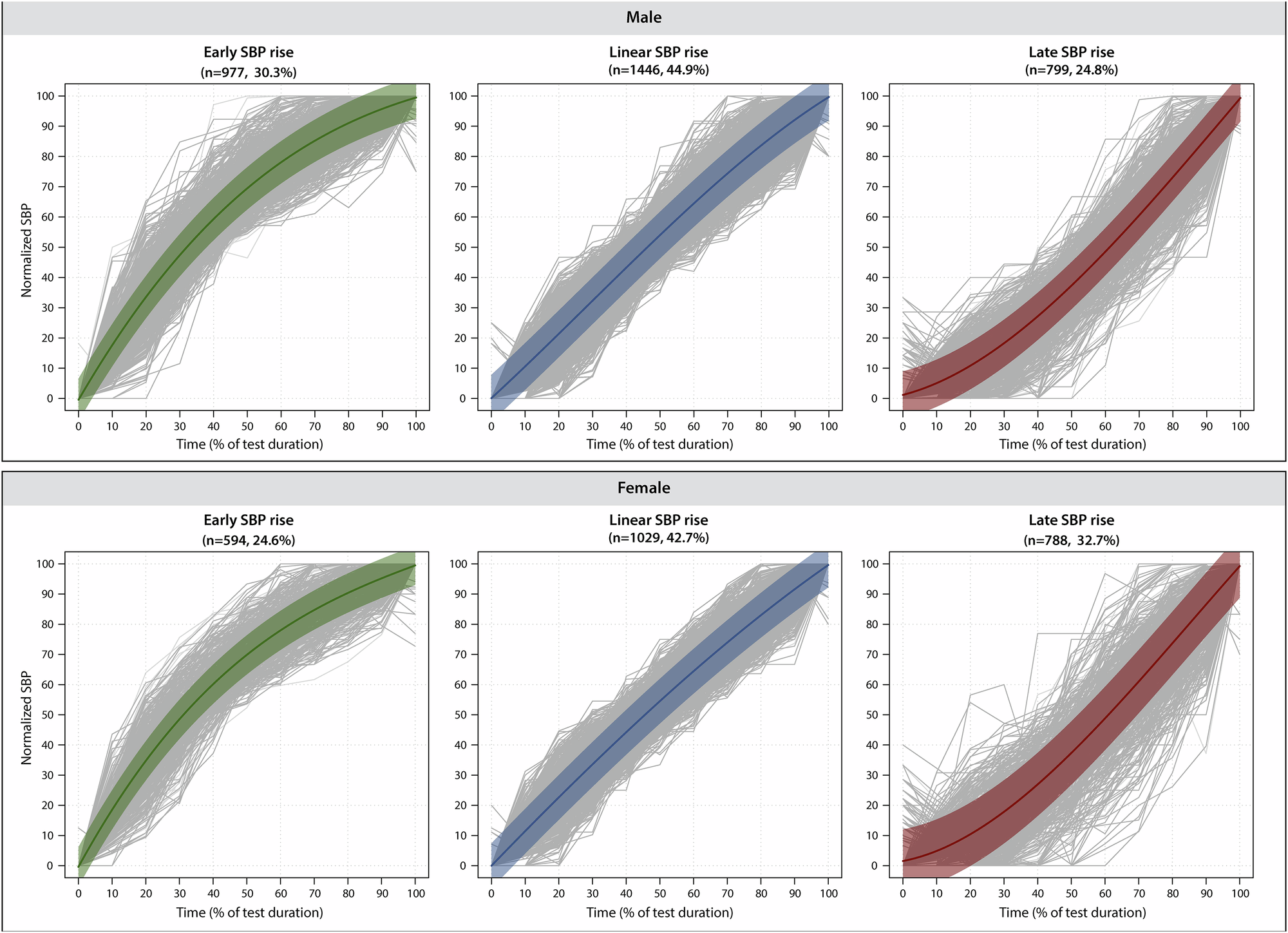

GBTM identified three distinct response profiles from the normalized SBP time-series in men and women. The profiles were labelled as an early, linear and late rise in SBP. Each panel shows the individual SBP time-series of the patients assigned to the trajectory (in grey) as well as the trajectory regression line (bold line) and its 90% prediction band (shaded area).
