Optimal endotracheal tube insertion depth in infants with birth weights under 500 grams

Journal of Perinatology (2026)Cite this article

Subjects

Abstract

Objective

Develop a birth anthropometry-based model to estimate initial endotracheal tube (ETT) insertion depth for infants with birth weight <500 g.

Study design

Retrospective single center cohort (2010–2025) including infants with birth weight <500 g, intubated on day 0 and underwent a postintubation chest radiograph. Adequate depth was defined as lip-to-tip placement between the upper border of T1 and the lower border of T2. Linear and quadratic models using birth weight and length were compared; the final model was presented as a bedside nomogram.

Result

Eighty-two infants met the inclusion criteria. Birth weight and length independently predicted radiograph-derived optimal depth (p < 0.001). A combined quadratic model showed the strongest fit (adjusted R² = 0.70), outperforming single parameter rules.

Conclusion

In neonates <500 g, a quadratic weight-length model improves the prediction of radiograph-defined midtracheal ETT depth and offers a practical bedside guide for initial placement.

This is a preview of subscription content, access via your institution

Access options

Buy this article

  • Purchase on SpringerLink
  • Instant access to the full article PDF.

USD 39.95

Prices may be subject to local taxes which are calculated during checkout

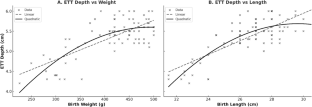

Fig. 1: Relationship between birth parameters and optimal endotracheal tube (ETT) depth.

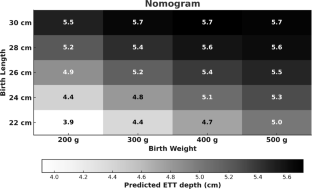

Fig. 2: Heatmap-based nomogram estimating optimal endotracheal tube (ETT) depth from birth weight and birth length.

Similar content being viewed by others

Data availability

All data generated or analyzed during this study are included in this article. Further enquiries can be directed to the corresponding author.

References

  1. Bartle RM, Miller AG, Diez AJ, Smith PB, Gentile MA, Puia-Dumitrescu M. Evaluating endotracheal tube depth in infants weighing less than 1 kilogram. Respir Care. 2019;64:243–7.

    Article  PubMed  Google Scholar

  2. Mills L, Redpath S, Liddell M, Simpson J, Davis C, Skeoch C, et al. Predictors of clinical outcome for infants transferred for extracorporeal life support consideration. Arch Dis Child Fetal Neonatal Ed. 2007;92:F233.

    Article  PubMed  PubMed Central  Google Scholar

  3. Tochen ML. Orotracheal intubation in the newborn infant: a method for determining depth of tube insertion. J Pediatr. 1979;95:1050–1.

    Article  CAS  PubMed  Google Scholar

  4. Hwang JH, Jung E, Lee BS, Kim EAR, Kim KS. Survival and morbidities in infants with birth weight less than 500 g: a nationwide cohort study. J Korean Med Sci. 2021;36:e206.

    Article  PubMed  PubMed Central  Google Scholar

  5. Amarilyo G, Mimouni FB, Oren A, Tsyrkin S, Mandel D. Orotracheal tube insertion in extremely low birth weight infants. J Pediatr. 2009;154:764–5.

    Article  PubMed  Google Scholar

  6. Flinn AM, Travers CP, Laffan EE, O’Donnell CP. Estimating the endotracheal tube insertion depth in newborns using weight or gestation: a randomised trial. Neonatology. 2015;107:167–72.

    Article  PubMed  Google Scholar

  7. Leung C. Optimal insertion depth for endotracheal tubes in extremely low-birth-weight infants. Pediatr Crit Care Med. 2018;19:328–31.

    Article  PubMed  Google Scholar

  8. Blayney MP, Logan DR. First thoracic vertebral body as reference for endotracheal tube placement. Arch Dis Child Fetal Neonatal Ed. 1994;71:F32–5.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  9. Thayyil S, Nagakumar P, Gowers H, Sinha A. Optimal endotracheal tube tip position in extremely premature infants. Am J Perinatol. 2008;25:13–6.

    Article  PubMed  Google Scholar

  10. Lau N, Playfor SD, Rashid A, Dhanarass M. New formulae for predicting tracheal tube length. Paediatr Anaesth. 2006;16:1238–43.

    Article  PubMed  Google Scholar

  11. Kempley ST, Moreiras JW, Petrone FL. Endotracheal tube length for neonatal intubation. Resuscitation. 2008;77:369–73.

    Article  PubMed  Google Scholar

  12. Pereira SS, Raja EA, Satas S. Weight-based guide overestimates endotracheal tube tip position in extremely preterm infants. Am J Perinatol. 2019;36:1498–503.

    Article  PubMed  Google Scholar

  13. Razak A, Faden M. Methods for estimating endotracheal tube insertion depth in neonates: a systematic review and meta-analysis. Am J Perinatol. 2021;38:901–8.

    Article  PubMed  Google Scholar

  14. Khan MA, Ahmed F, Memon S, Rizvi LB, Mohsin H, Afzal A, et al. The effect of endotracheal tube (ETT) tip position on lung aeration in term and preterm neonates: a comparative analysis. Cureus. 2025;17:e79529.

    PubMed  PubMed Central  Google Scholar

  15. Ebenebe CU, Schriever K, Wolf M, Herrmann J, Singer D, Deindl P. Recommendations for nasotracheal tube insertion depths in neonates. Front Pediatr. 2022;10:990423.

    Article  PubMed  PubMed Central  Google Scholar

  16. Cerone JB, Pinheiro JMB. Tracheal length measurement in intubated neonates to guide the design and use of endotracheal tube glottic depth markings. Children. 2022;9:169.

  17. Tamai K, Matsumoto N, Yorifuji T, Takeuchi A, Nakamura M, Nakamura K, et al. Delivery room intubation and neurodevelopment among extremely preterm infants. Pediatr Res. 2024;95:1897–902.

    Article  PubMed  Google Scholar

  18. Kim SH, Jung E, Lee HN, Lee JM, Park SH, Jeong J, et al. Outcomes at 18-24 months of infants with birth weight under 500 g born in Korea during 2013-2017: a nationwide cohort study. Neonatology. 2024;121:74–80.

    Article  PubMed  Google Scholar
