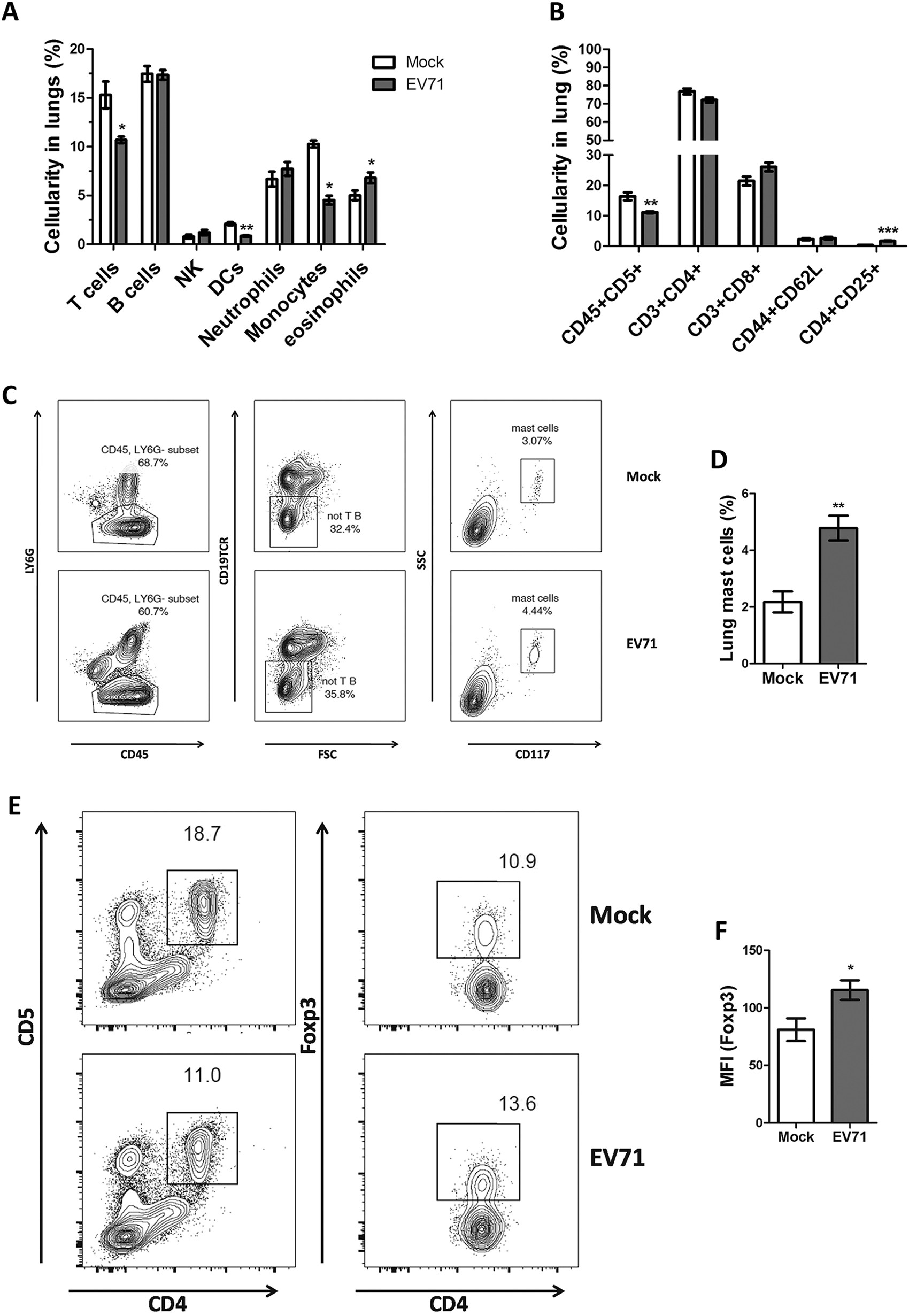

Fig. 4
From: Mast cells contribute to Enterovirus 71 infection-induced pulmonary edema in neonatal mice
EV71 infection increased lung mast cells. To investigate the role of immune cells in the process of EV71 infection, the whole lung immune cells were analyzed by Flow Cytometry. a The proportion of lung immune cells from mock- (n = 4) and EV71-infected mice (n = 4). b The proportion of lung T cells with different phenotypes in mice with mock (n = 4) and EV71 infection (n = 4). c CD117 surface expression of mast cells. d The proportion of lung mast cells in mice with mock (n = 4) and EV71 infection (n = 4). e Expression of Foxp3 in lung T cells. f Mean fluorescence intensity (MFI) of Foxp3 in lung T cells of mice with mock (n = 7) and EV71 infection (n = 10). f FACs analysis of lung DCs. The data are expressed as means ± SEM. *P < 0.05, vs. Mock; **P < 0.01, vs. Mock; ***P < 0.001, vs. Mock
