Fig. 2: Large-scale 3D imaging and cytometry analysis of Prox-1 mouse kidneys suggests lymphatic expansion following IRI.

From: Quantitative 3-dimensional imaging and tissue cytometry reveals lymphatic expansion in acute kidney injury

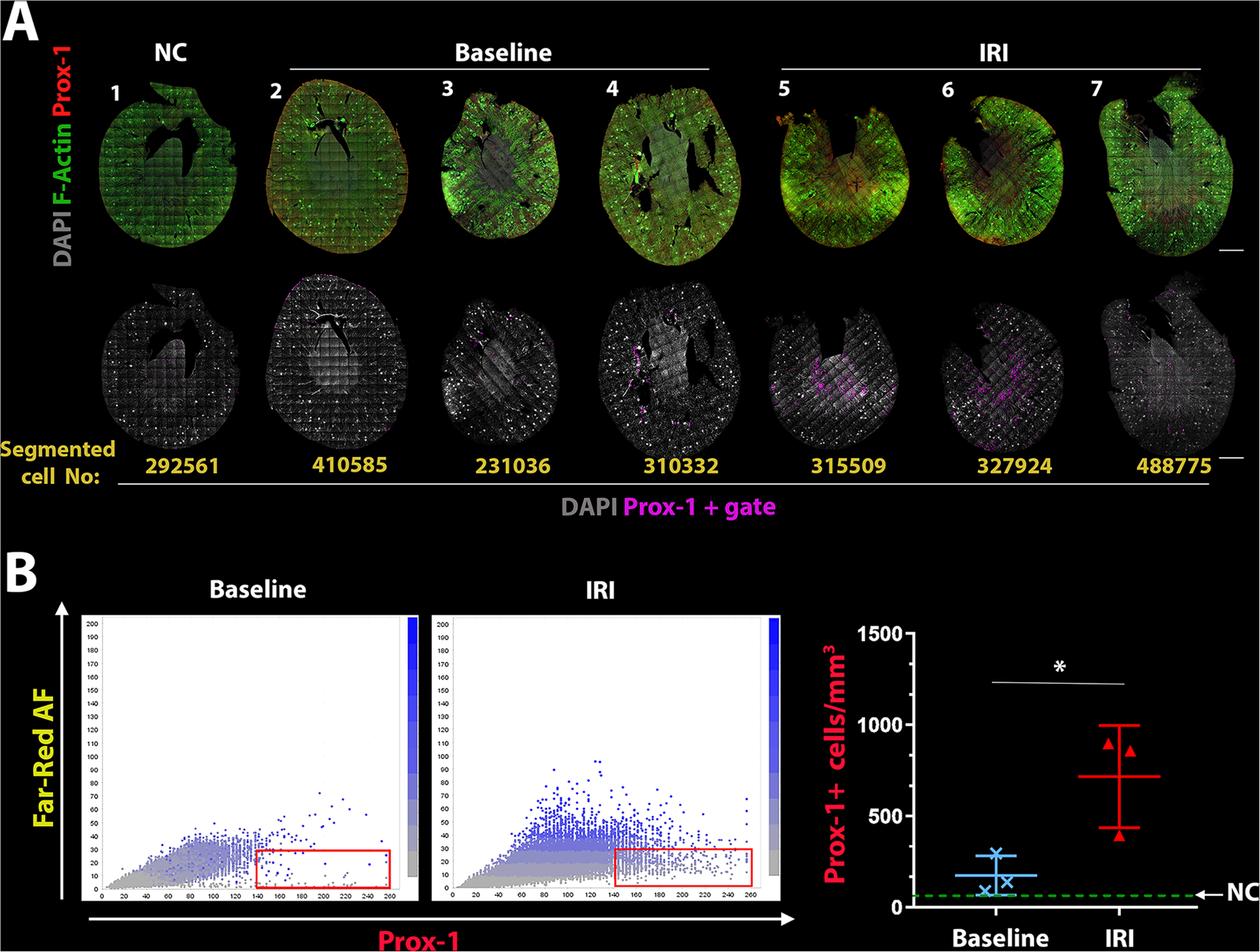

Fig. 2

A Maximum projection images of samples 1–7 (top row shows fluorescence signal from 3 channels, bottom shows the distribution of Prox-1+ gated cells using nuclear overlays in magenta). The number of segmented cells in each section is displayed at the bottom of each sample in yellow. B Representative scatter plots and gates to identify Prox-1+ cells in baseline and IRI samples, and a summary plot from all samples is shown on the far right. Scale bars = 1 mm. (NC = negative control). The brightness/contrast was enhanced for clarity using Adobe Photoshop.
