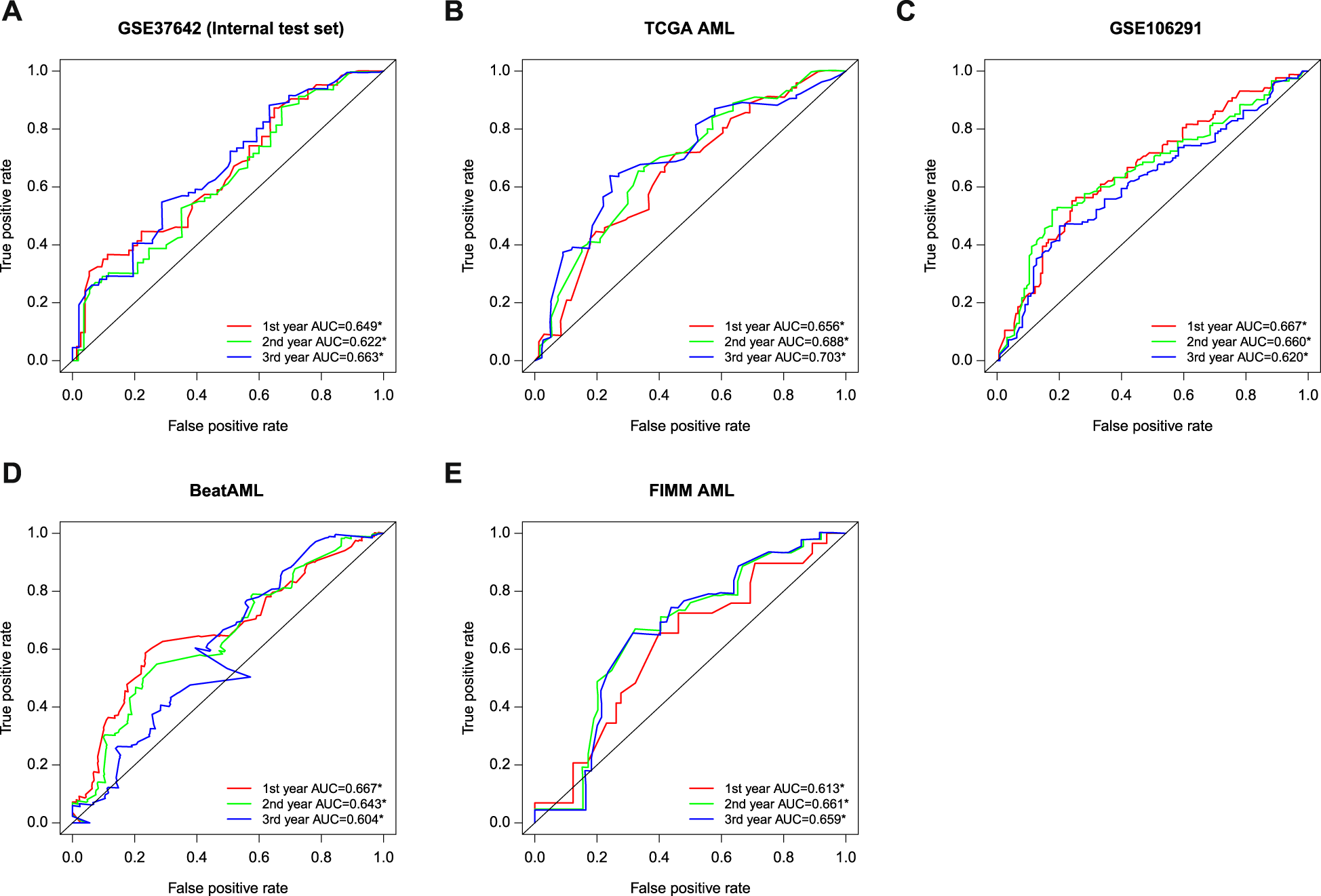

Fig. 4: The prognostic performance of IPRP score across AML test cohorts.
From: An immunity and pyroptosis gene-pair signature predicts overall survival in acute myeloid leukemia
The receiver operating characteristic (ROC) curves of the paired IPRP score in A GSE37642 (internal test set), B TCGA-AML, C GSE106291, D BeatAML, E FIMM AML cohorts. The colored curves correspond to different follow-up time points in the survival data with ROC-AUC values. The black diagonal line corresponds to the random classifier (ROC-AUC = 0.5). *p < 0.05, permutation test.
