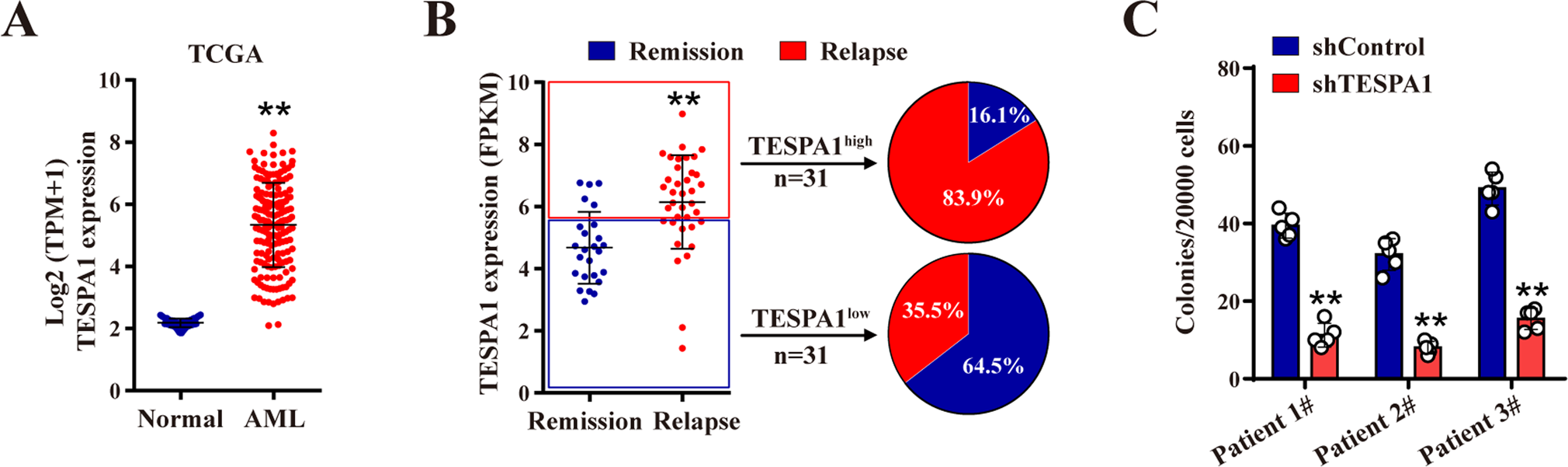

Fig. 6: TESPA1 is essential for human acute myeloid leukemia (AML) cell growth.
From: Tespa1 facilitates hematopoietic and leukemic stem cell maintenance by restricting c-Myc degradation
A The expression of TESPA1 in AML patients and healthy donors. The data (173 AML patients and 70 healthy donors) were derived from The Cancer Genome Atlas (TCGA) database. B Distribution of TESPA1 expression in AML patients with remission or relapse. Data were obtained from Vizome database (http://www.vizome.org/). C The colony formation assays of primary human AML cells after TESPA1 knockdown. Each dot represents one culture. **P <  0.01.
