Fig. 4: Motif scanning of all differentially expressed genes. | Leukemia

Fig. 4: Motif scanning of all differentially expressed genes.

From: The EGR3 regulome of infant KMT2A-r acute lymphoblastic leukemia identifies differential expression of B-lineage genes predictive for outcome

Fig. 4: Motif scanning of all differentially expressed genes.

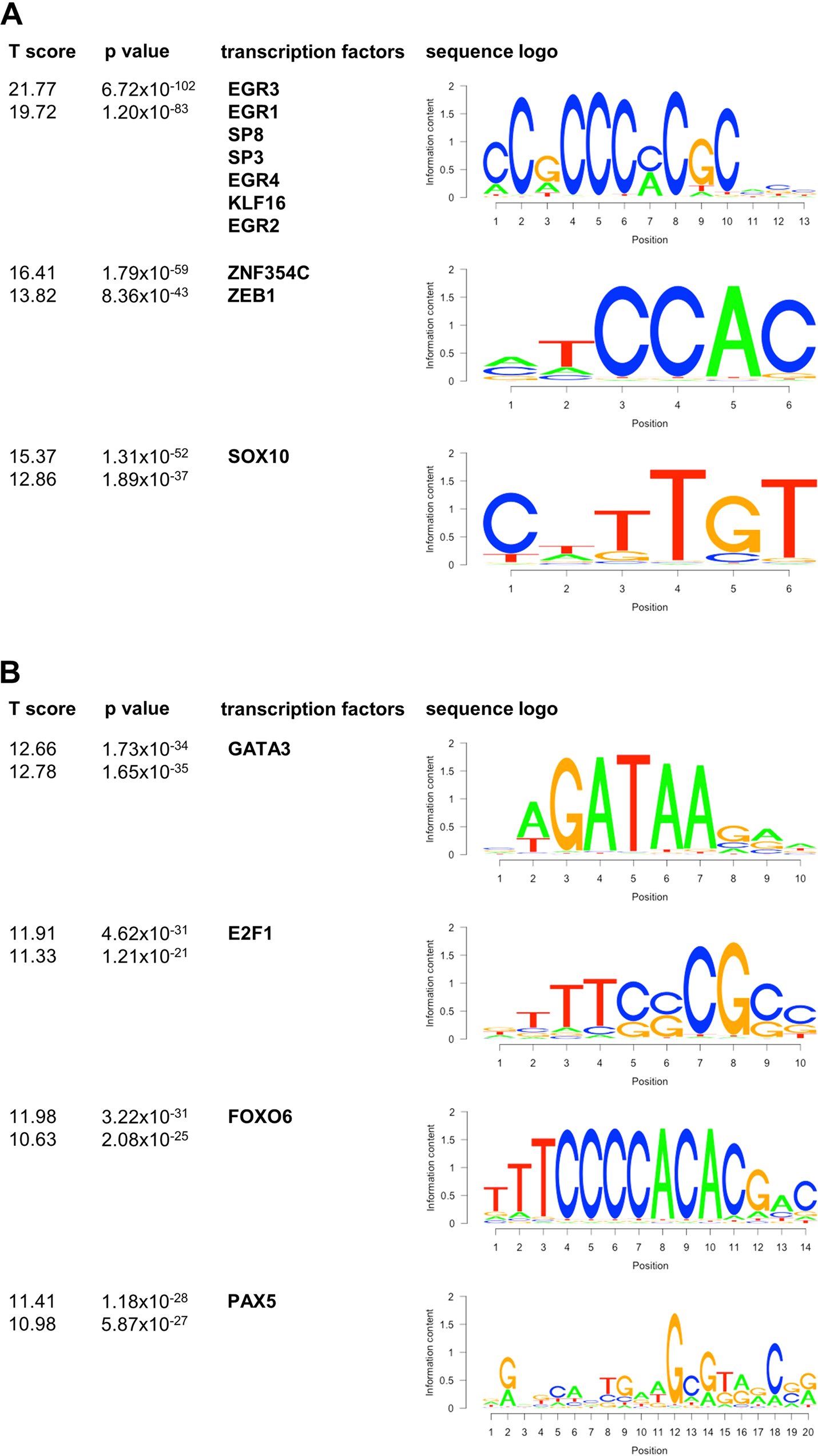

A Motif scanning result of all direct EGR3 target genes. T score, p value, transcription factor and sequence logo were identified using BETA plus. Upper T score and p value apply to upregulated genes, lower T score and p value apply to downregulated genes. B Motif scanning result of differentially expressed but not directly EGR3-regulated genes. T score, p value, transcription factor and sequence logo were identified by BETA plus. Upper T score and p value apply to upregulated genes, lower T score and p value apply to downregulated genes.
