Fig. 7: MYC translocation with IGH or novel partner confers genomic configuration that activates MYC transcription. | Leukemia

Fig. 7: MYC translocation with IGH or novel partner confers genomic configuration that activates MYC transcription.

From: Non-IG::MYC in diffuse large B-cell lymphoma confers variable genomic configurations and MYC transactivation potential

Fig. 7: MYC translocation with IGH or novel partner confers genomic configuration that activates MYC transcription.

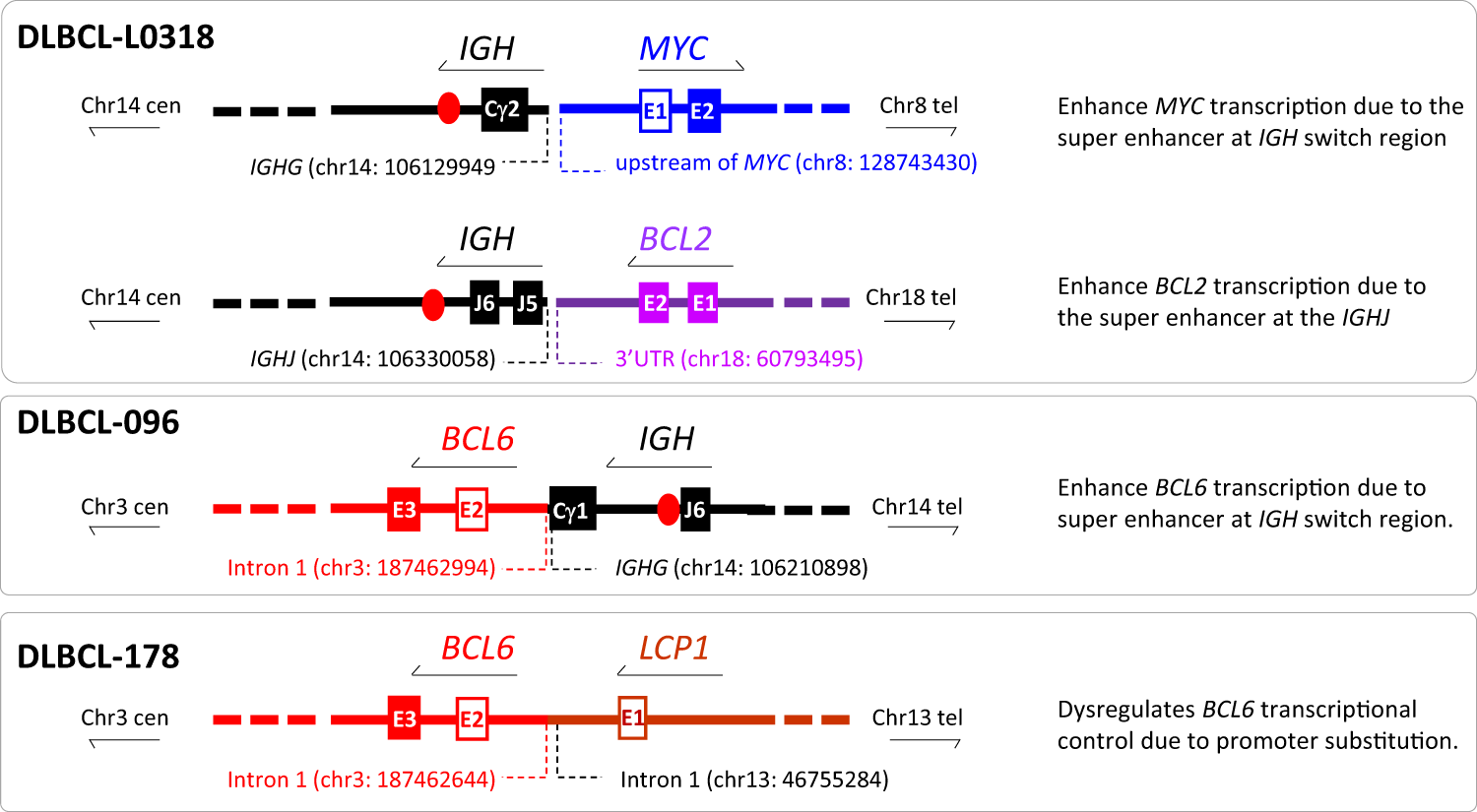

Genomic breakpoint sequencing analyses was performed by targeted locus capture-based next generation sequencing (TLC-NGS) with sequence annotations based on human genome (hg19). E: exon (fill box: coding exon; non-filled box: non-coding exon). Cen: centromere; Tel: telomere.
