Fig. 1: Heatmap of unsupervised hierarchical clustering based on RNA-seq data related to genes implicated in the BcR signaling pathway in low-count CLL-type MBL, CLL-type MBL and CLL. | Leukemia

Fig. 1: Heatmap of unsupervised hierarchical clustering based on RNA-seq data related to genes implicated in the BcR signaling pathway in low-count CLL-type MBL, CLL-type MBL and CLL.

From: Molecular and functional characterization of the B-cell receptor in chronic lymphocytic leukemia-like monoclonal B-cell lymphocytosis

Fig. 1

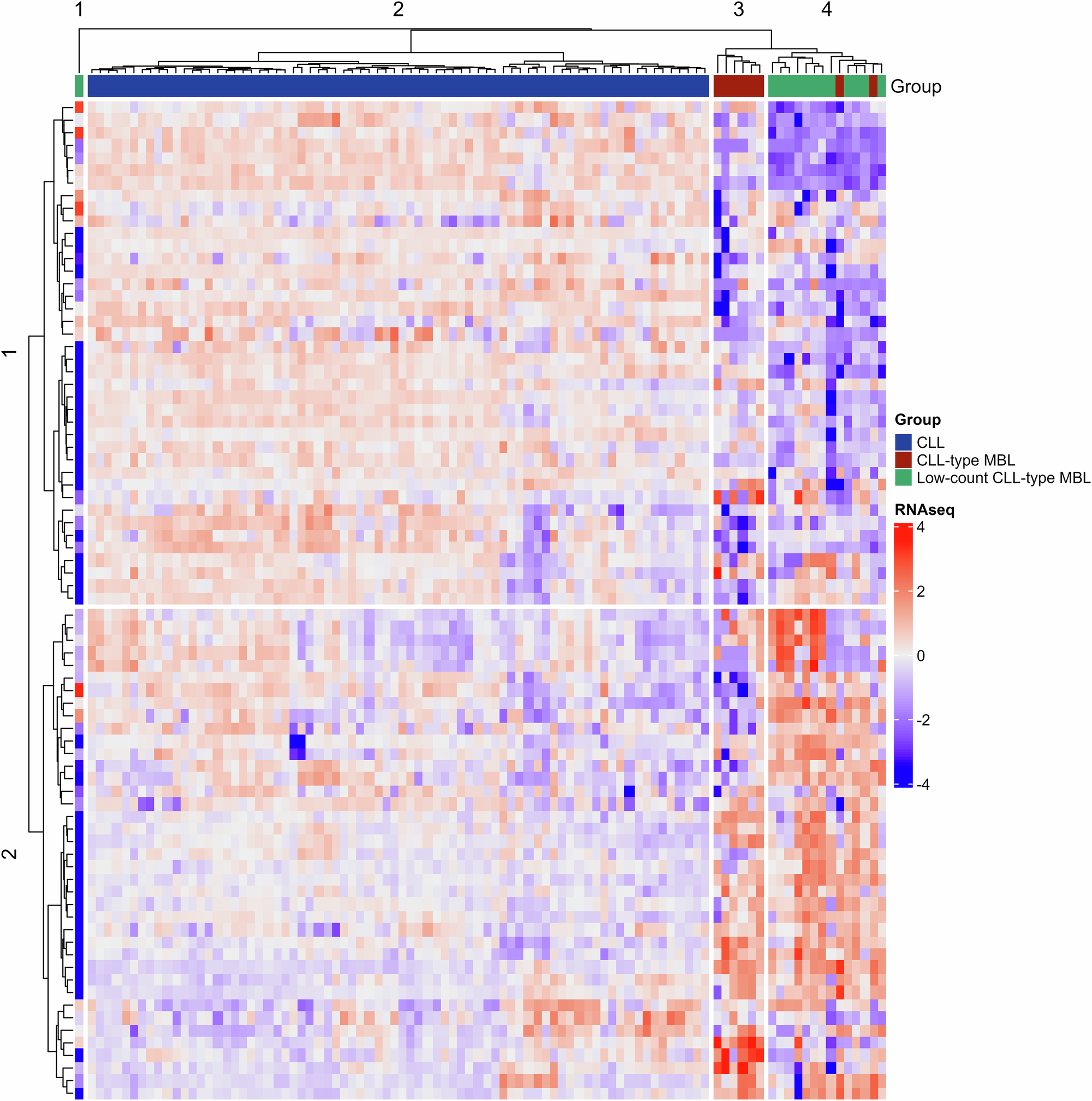

Columns represent samples and rows represent genes, respectively. Sample origin is depicted through a color code (green: low-count CLL-type MBL, red: CLL-type MBL and blue: CLL). The color bar indicates mRNA expression levels (dark red indicates high expression; dark blue indicates low expression). RNA-seq RNA-sequencing, BcR B cell receptor, CLL chronic lymphocytic leukemia, MBL monoclonal B cell lymphocytosis.
