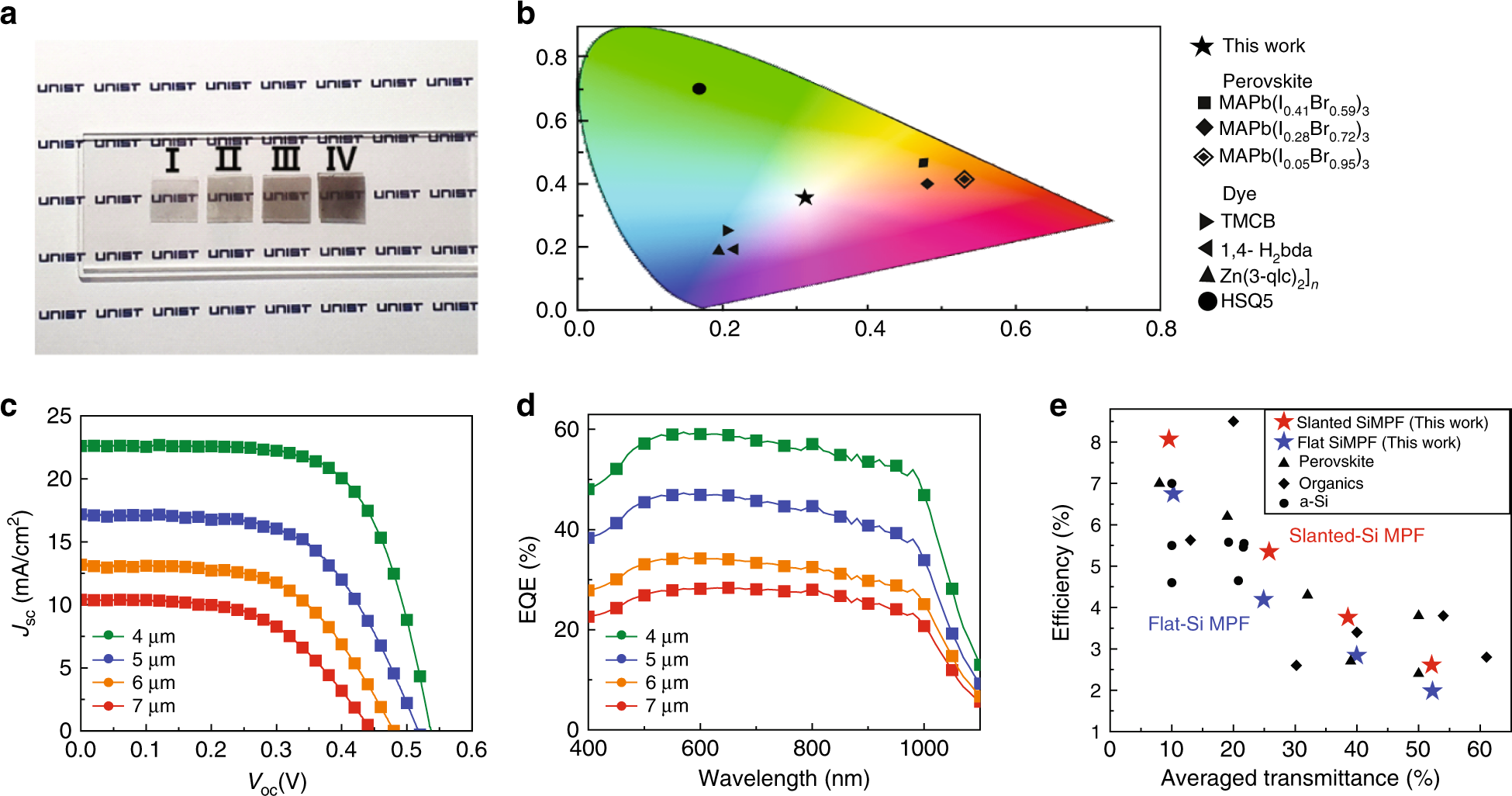

Fig. 3: Performance of transparent solar cells based on the slanted-tip SiMPF.
From: Stretchable and colorless freestanding microwire arrays for transparent solar cells with flexibility
a Optical images of freestanding slanted-tip SiMPF. b The representation of the color coordinates of slanted-tip SiMPF (black star, this work), halide perovskites (black diamond, black square, and white diamond containing small black diamond), dyes (black right pointing triangle, black left pointing triangle, black up pointing triangle, and black circle) with AM1.5 G illumination on the CIE chromaticity diagram. c J–V characteristics and d EQE of slanted-tip SiMPF-based transparent solar cells: 4 μm (green line), 5 μm (blue line), 6 μm (yellow line), and 7 μm (red line). e The comparisons with previous reported neutral-color transparent solar cells based on halide perovskite, dye, a- Si, and organics.
