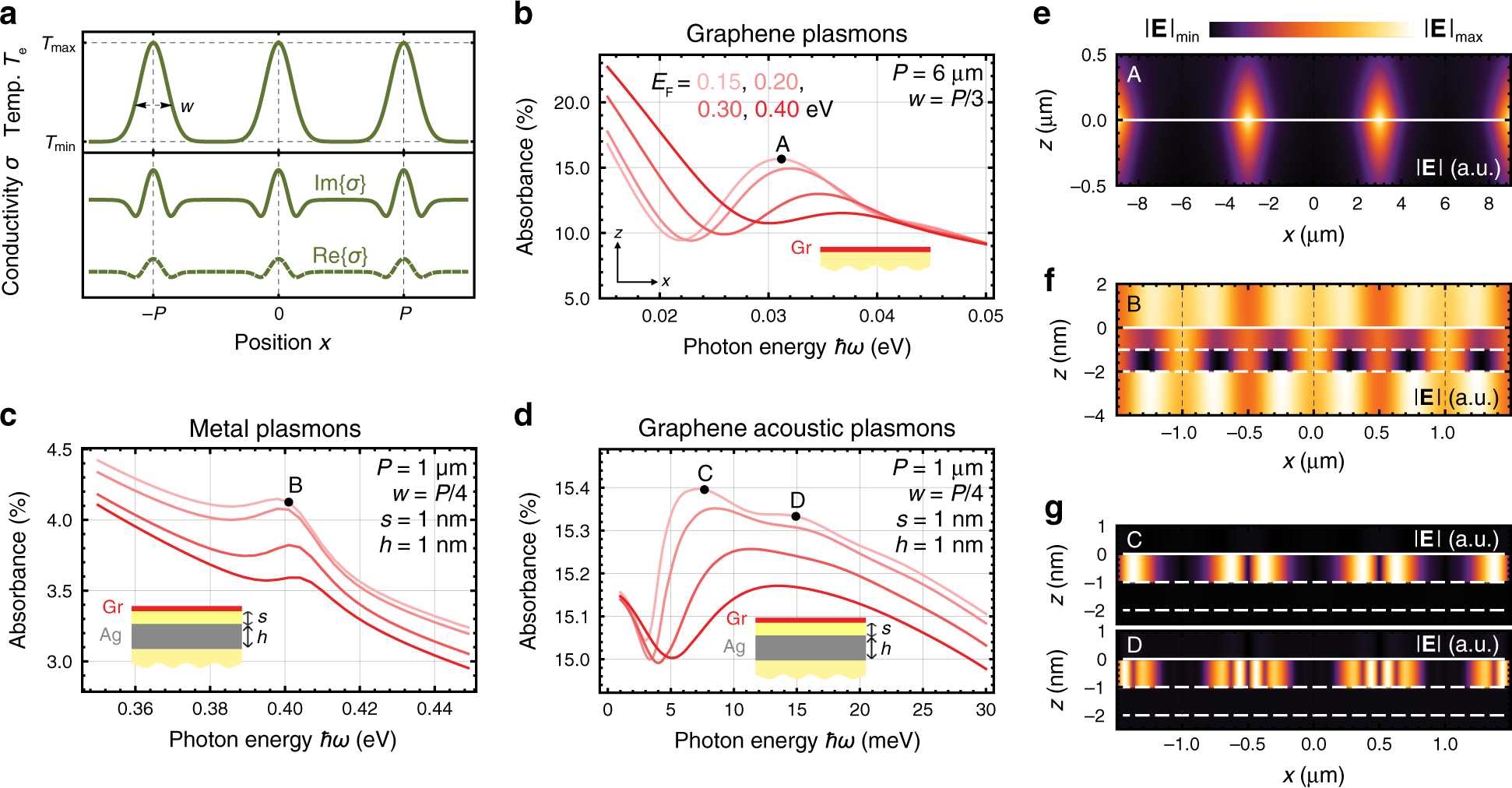

Fig. 3: Optical modulation of plasmons in graphene and graphene/metal hybrid systems.
From: Thermal manipulation of plasmons in atomically thin films

We consider different structures (see insets) with equivalent spatial modulations of the electron temperature, optically imprinted on graphene (panel a, top) and consisting of a series of Gaussian profiles arranged with period P, FWHM w and peak temperature Tmax = 8000 K, superimposed on a room temperature background Tmin = 300 K; the resulting modulation of the conductivity is shown in the lower plot. b–d Absorbance spectra of two different structures with geometrical parameters P, w, h and spacings s as indicated by the labels; all dielectrics in these structures (yellow regions in the insets) are taken to have a permittivity ε = 2; the graphene Fermi energy is varied in all plots according to the legend in b; spectra reveal pure graphene plasmons in b, graphene-modulated metal-like plasmons in c and graphene acoustic plasmons in d. e–g Electric field distributions in the structures of b–d at the plasmon frequencies indicated by the corresponding spectral points A–D; solid and dashed white lines indicate the graphene and metal interfaces
