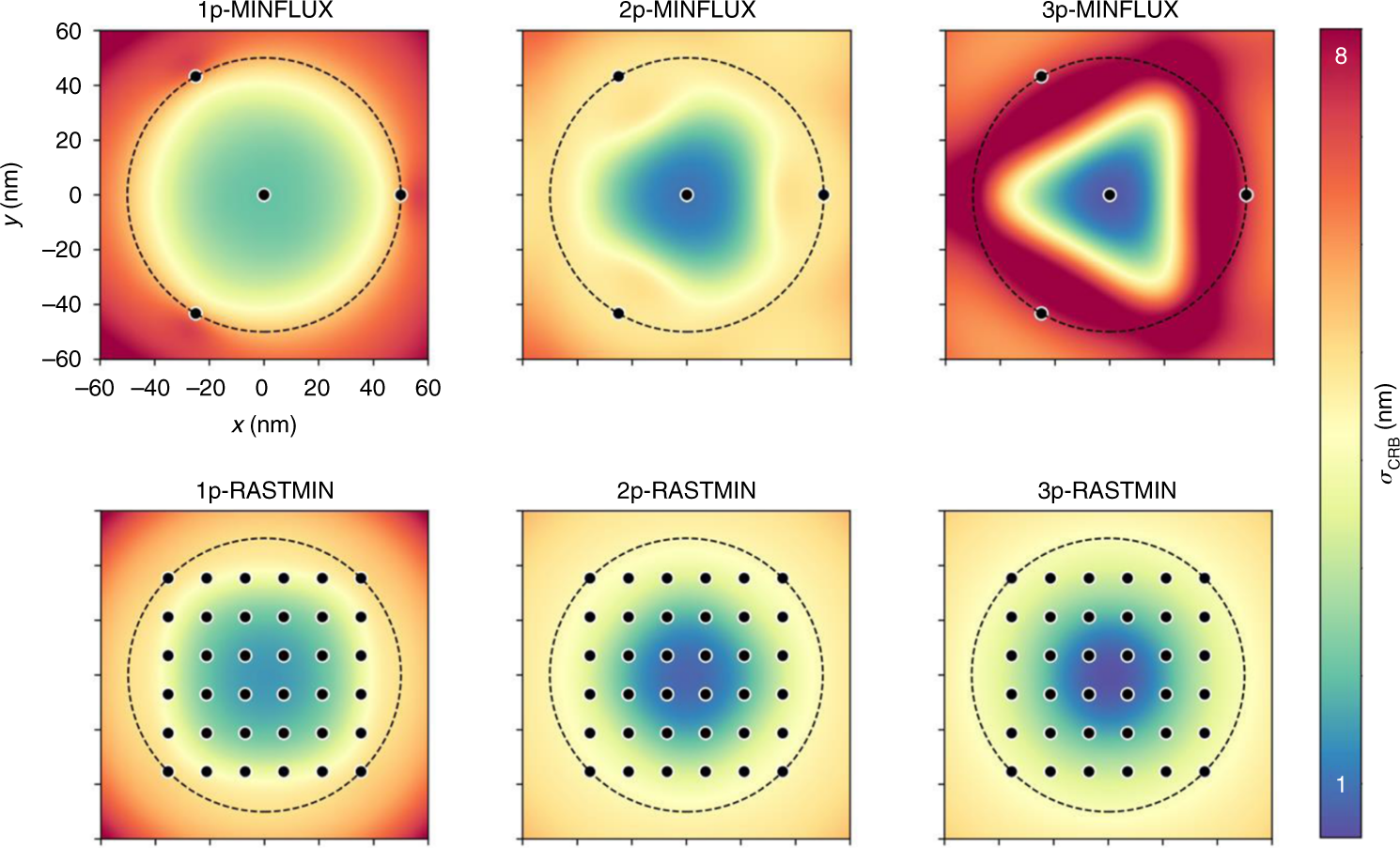

Fig. 1: Precision maps (localization error lower bound σCRB as a function of the emitter position) for equivalent configurations of MINFLUX and RASTMIN, for 1-photon, 2-photon, and 3-photon excitation.
From: Multiphoton single-molecule localization by sequential excitation with light minima
Parameters: L = 100 nm, N = 500, SBR = 4, λ = 647, 800, and 1300 nm for 1-, 2- and 3-photon processes, respectively
