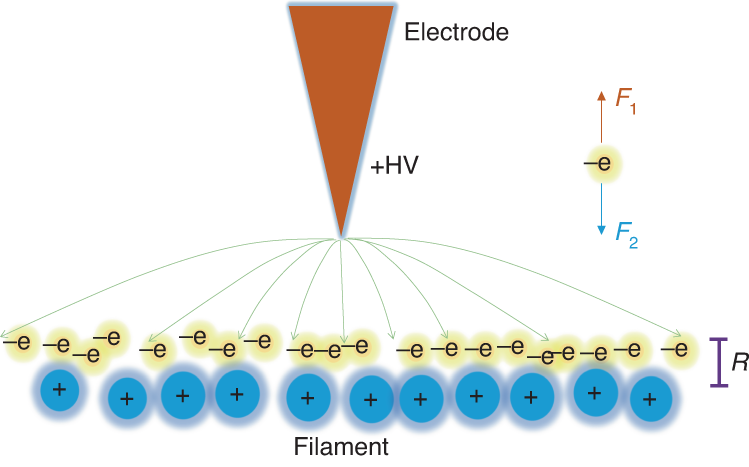

Fig. 8
Schematic diagram of the high voltage electrode controlled filament via the electric field lines as if it were a fan. R is the diameter of the filament; F1 and F2 are the attractive electric forces in the opposite direction induced by the positive high-voltage electric field and the positive ions, respectively
