Fig. 4

From: NOON-state interference in the frequency domain

Fig. 4

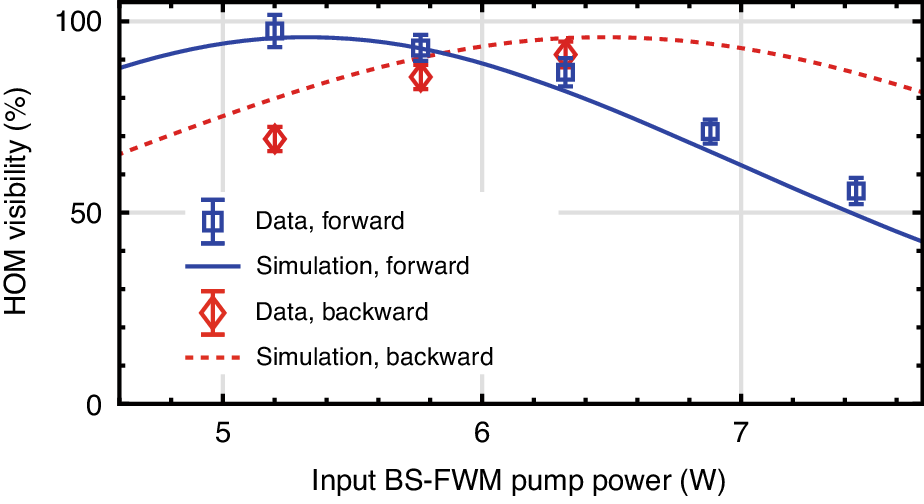

HOM interference using the frequency beam splitter. Blue squares and red diamonds represent the net visibilities for the forward and backward directions of the HOM effect, respectively. The error bars are calculated from the fit coefficients and confidence bounds of the HOM interference. Solid blue and red dashed curves are the simulation results
