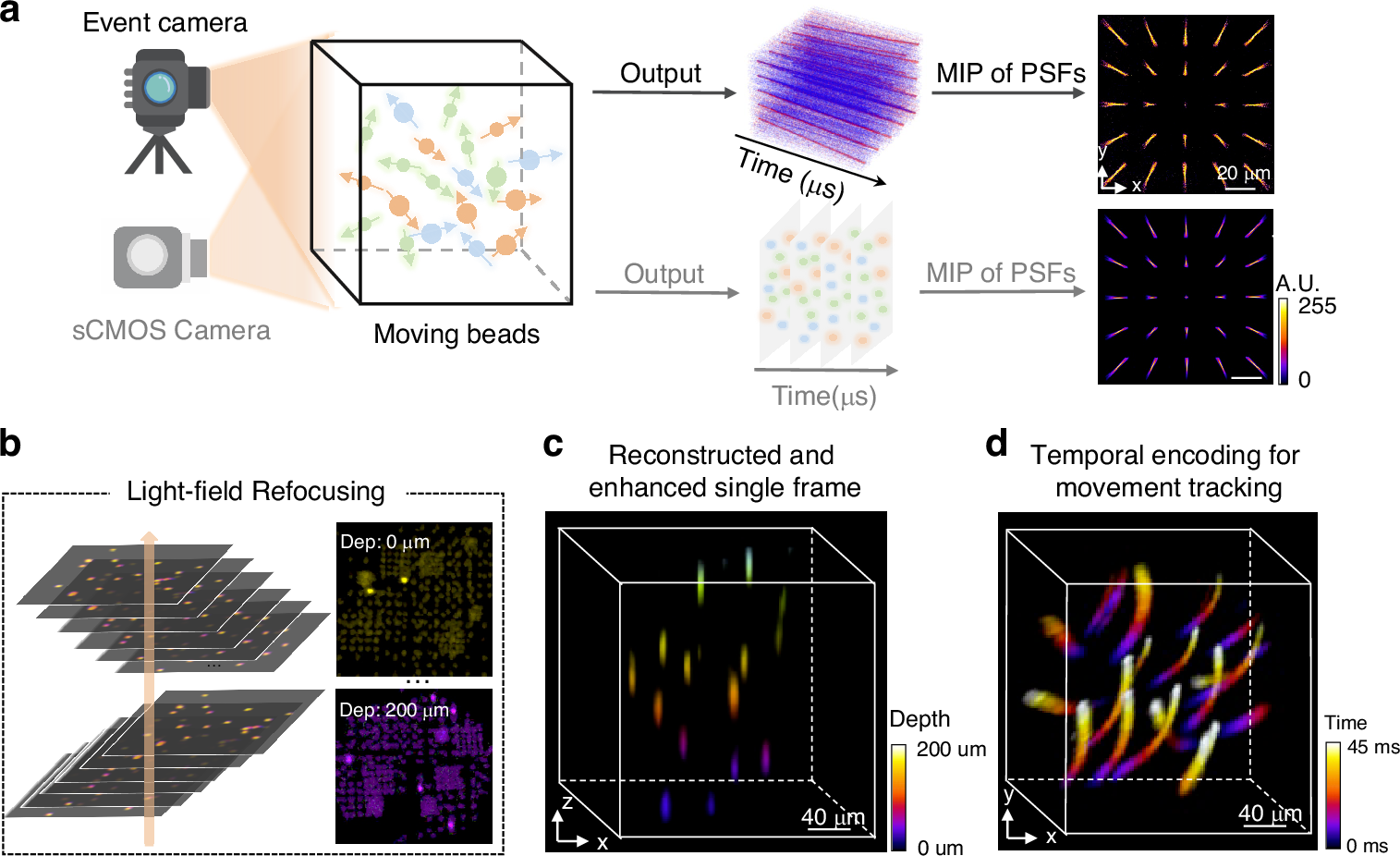

Fig. 1: Overview of introducing event detection into light-field microscopy11.
From: Ultra-fast light-field microscopy with event detection
a Comparison of event camera and sCMOS camera for light-field microscopy. b Event stream is utilized to generate time-surface frame with the corresponding algorithm, then each time-surface frame is reconstructed using a light-field refocusing algorithm. c Color-coded 3D light-field reconstruction of the object with an optional deep-learning technique. d Color-coded 3D motion trajectory reconstructed over a 45 ms time span. The subfigures are cropped from the corresponding reference
