Fig. 4: Representation of various spin defects.

From: Quantum sensing with optically accessible spin defects in van der Waals layered materials

Fig. 4

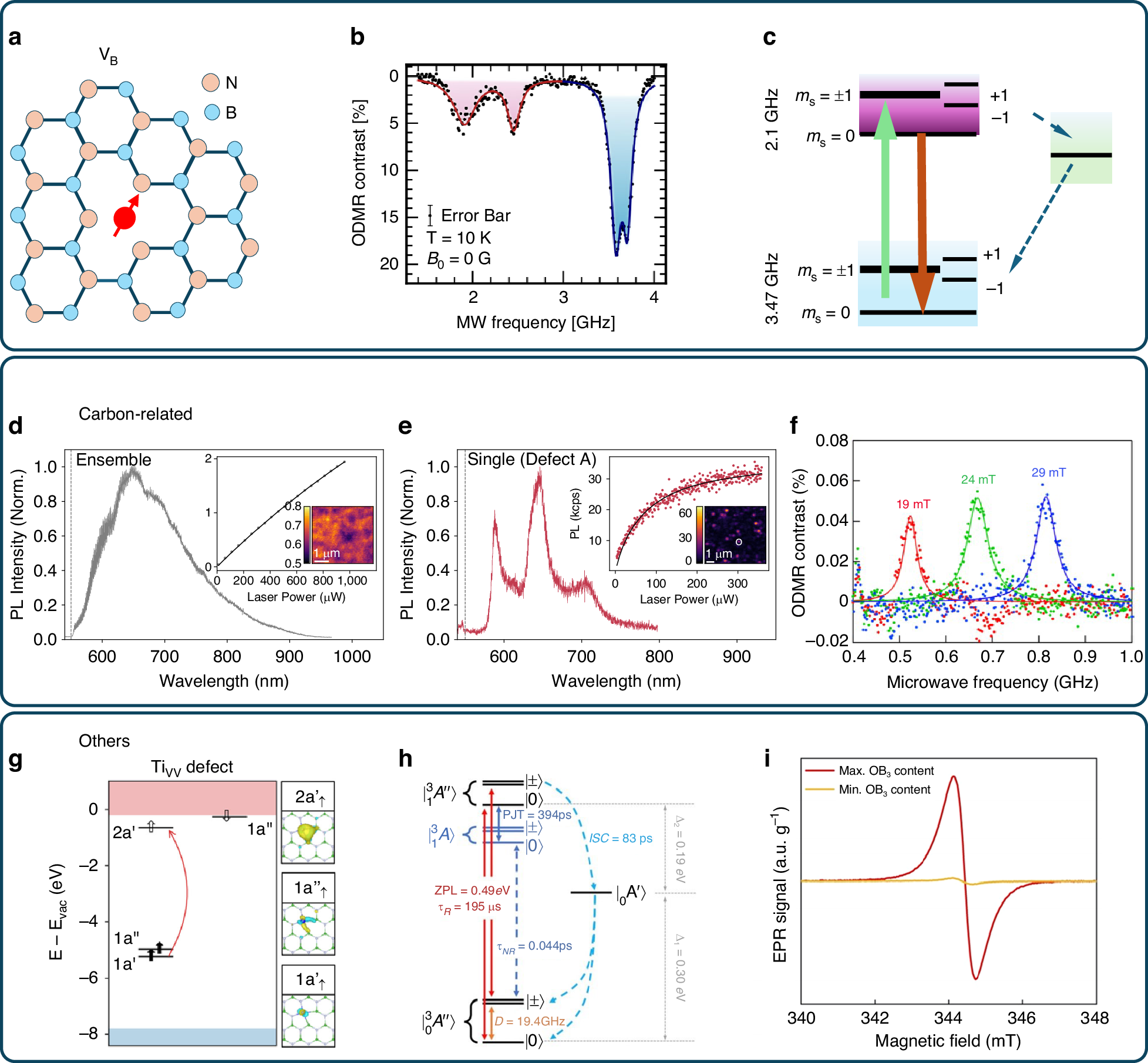

a Depiction of the structural configuration of a boron vacancy (\({{\rm{V}}}_{B}^{-}\)) defect in hBN. b Zero-field ODMR spectrum of \({{\rm{V}}}_{B}^{-}\), showing resonance dips corresponding to spin transitions within the electronic state (in red), and the ground state (blue)115. c Simplified energy level structure of the \({{\rm{V}}}_{B}^{-}\) center in hBN115,120. d Photoluminescence (PL) spectrum of an ensemble of carbon-related spin defects within hBN109. e PL spectrum of an individual carbon-related spin defect. f ODMR of a carbon-related spin defect137. g Calculated defect levels of TiVV defect in hBN140. h Energy structure of the TiVV defect and their recombination rates. i Room temperature X-band EPR spectra of paramagnetic OB3 in boron oxynitride (BNO) samples143. Figures adapted and reprinted with permission from refs. 109,115,137,140,143. Copyright by Springer Nature109,115,137,140 and American Chemical Society143
