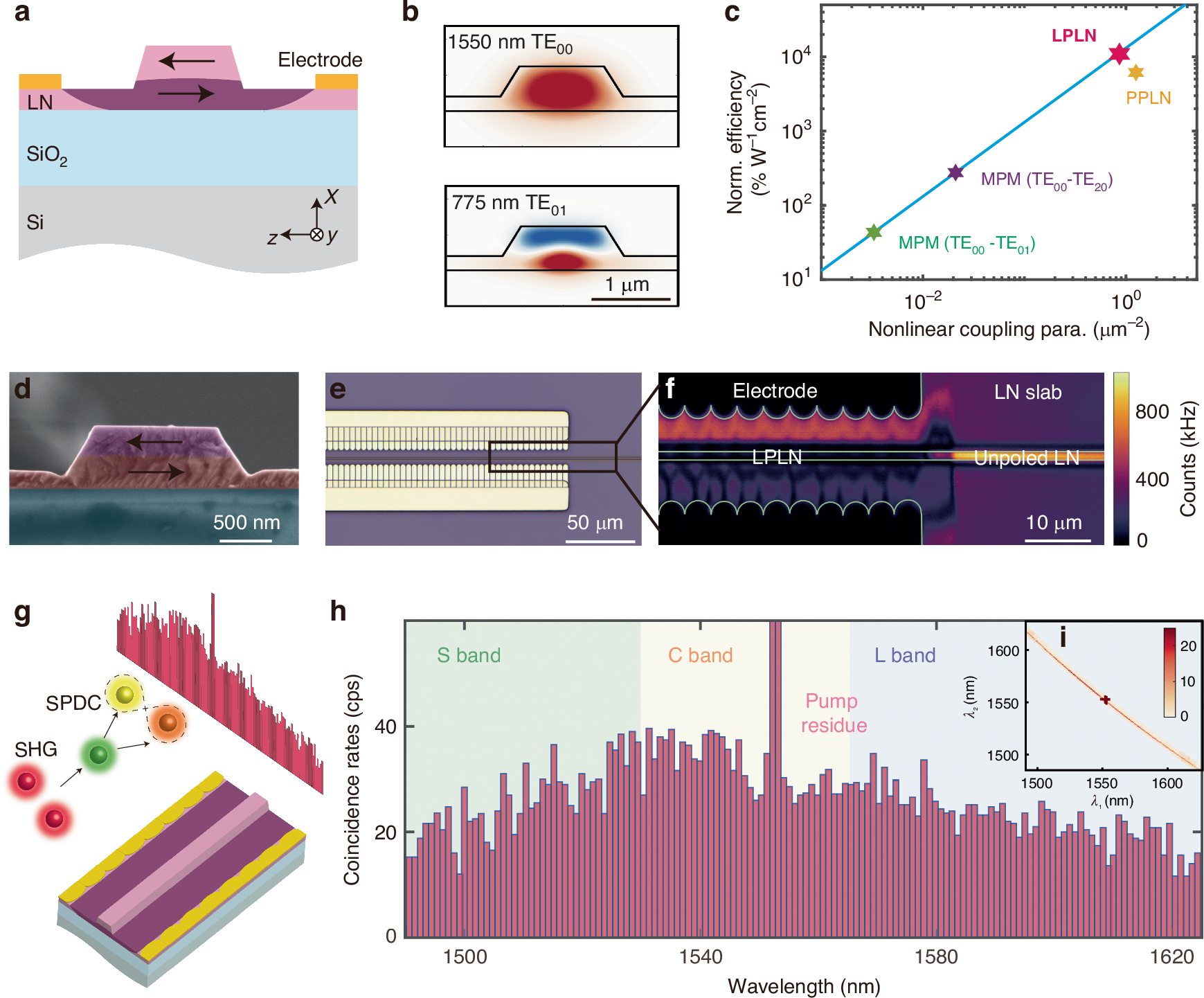

Fig. 1: Layer-poled lithium niobate (LPLN) nanophotonic waveguide for efficient photon-pair generation.
