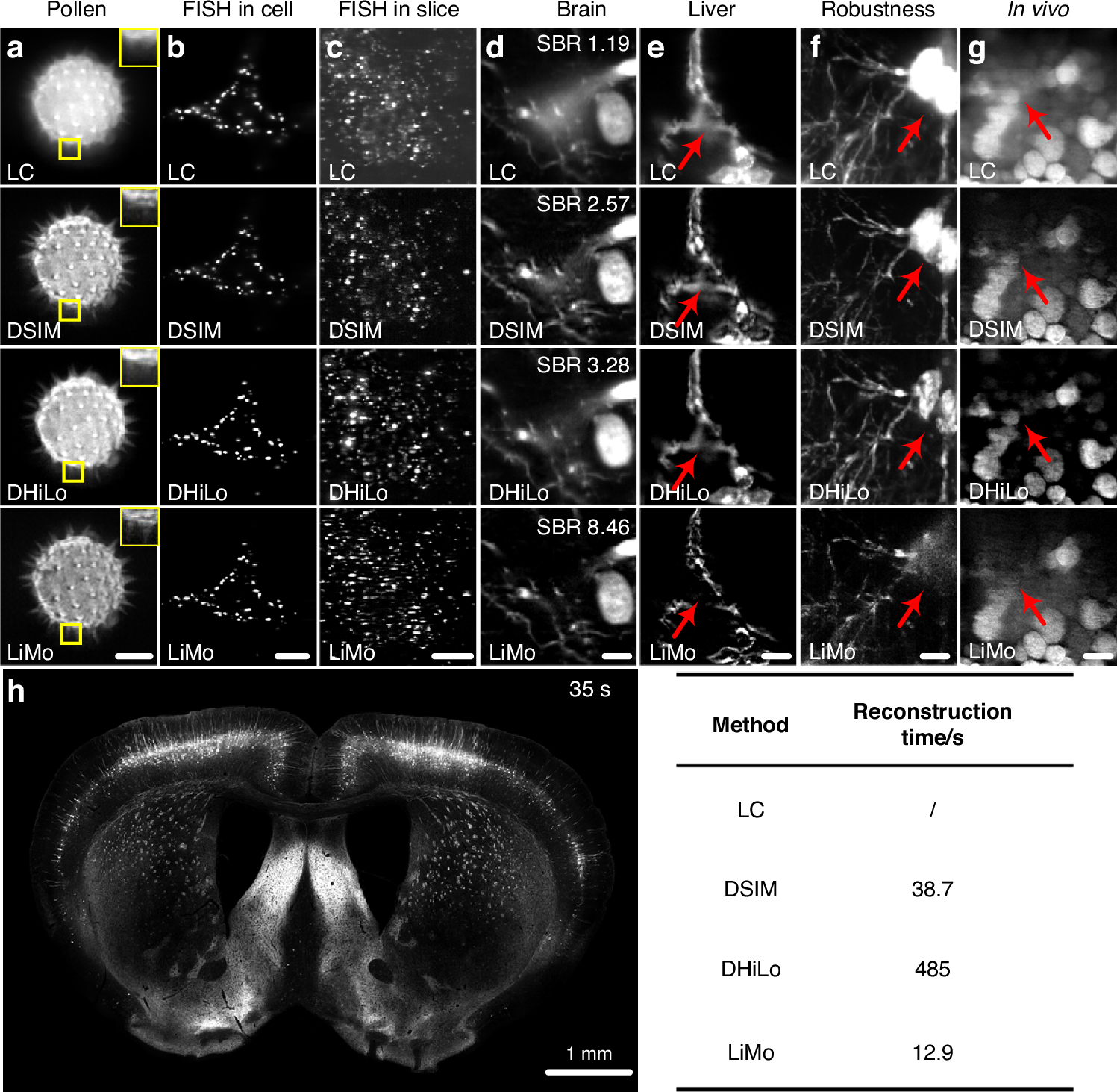

Fig. 11: Flexible reconstruction implementations of off-axis separated detection in different applications.
From: Optical sectioning methods in three-dimensional bioimaging
Reconstructions of a pollen, b gene distribution in 3T3 cell, c gene distribution in mouse brain slice, d mouse brain slice, and e mouse liver via different methods. Reconstructions of the f mouse brain slice when the linear illumination is titled and g mouse liver in vivo via different methods. h Coronal plane of the mouse brain and the reconstruction time via different methods. Scale bar: 10 μm in (a–c), (e), and (g), 5 μm in (d), 20 μm in (f), and 1 mm in (h)
