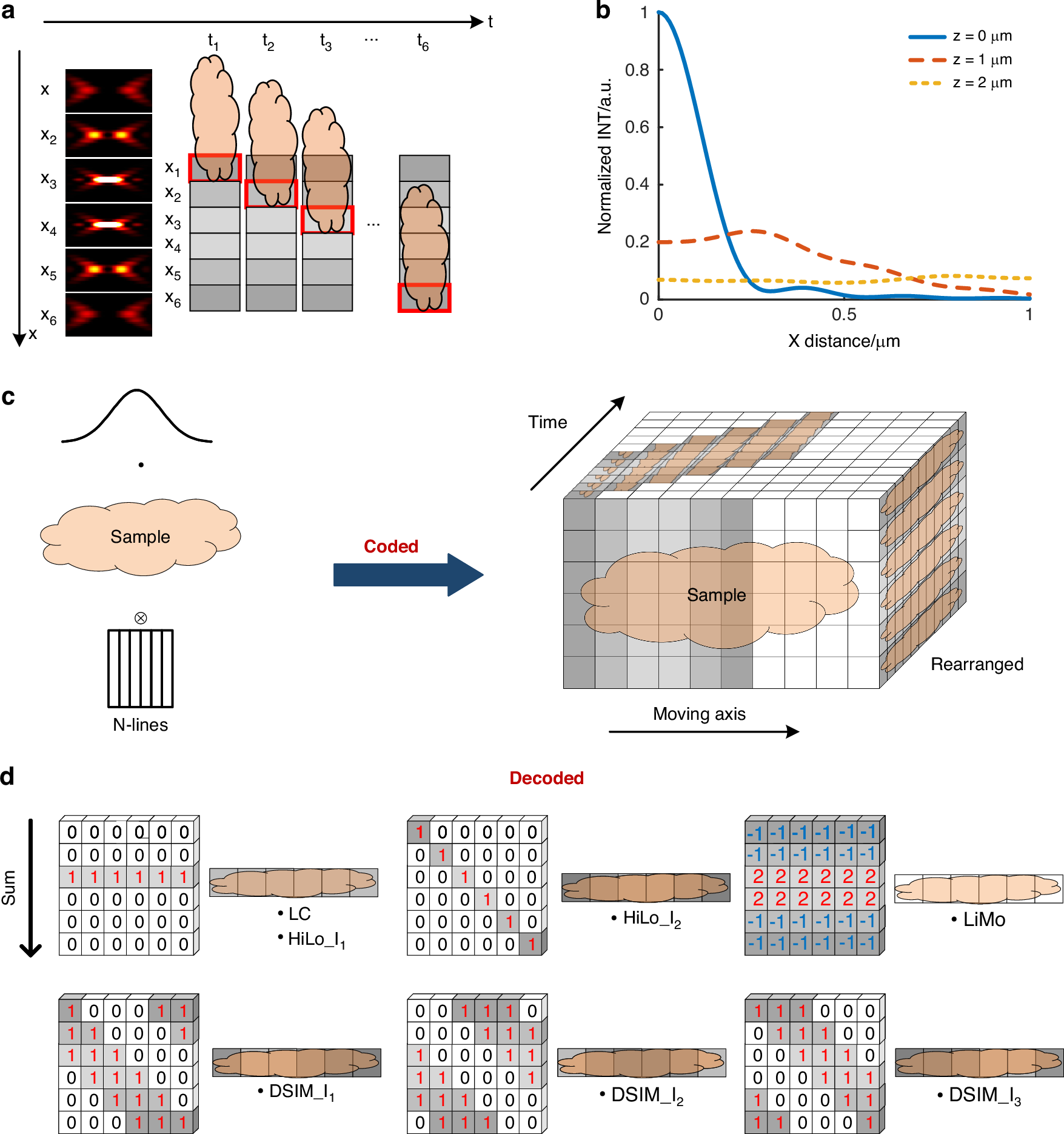

Fig. 4: Spatiotemporal multiplexing scanning of separated detection in conjunction with various reconstruction methods.
From: Optical sectioning methods in three-dimensional bioimaging
a Schematic diagram of spatiotemporal multiplexing scanning. b Intensity variation along the off-axis direction and the defocused direction. c Schematic diagram of acquiring raw data. d Schematic diagram of different reconstruction methods based on raw data
