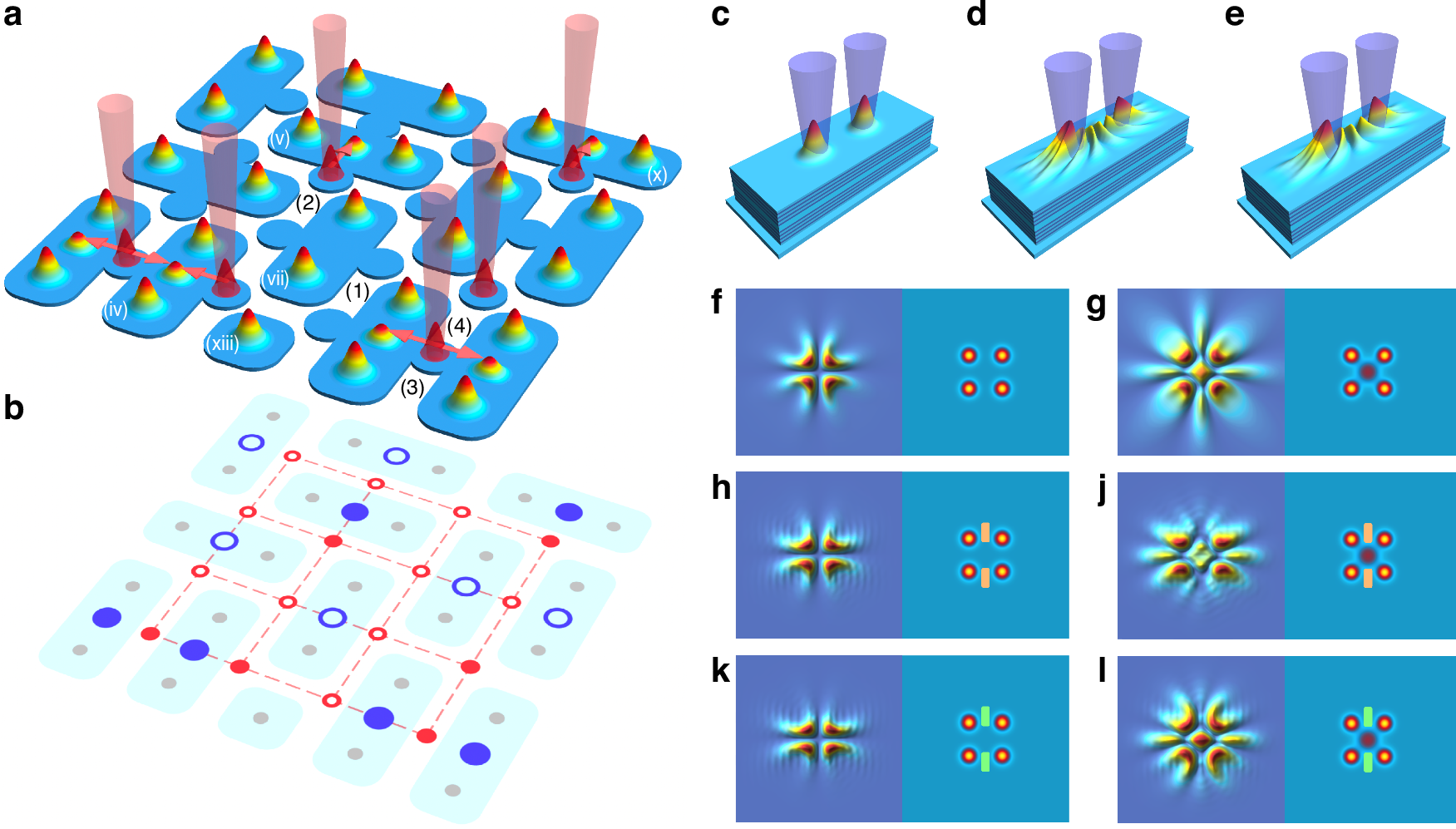

Fig. 1: Conceptual illustration of a lattice of polariton dyads with optically controlled connections.
